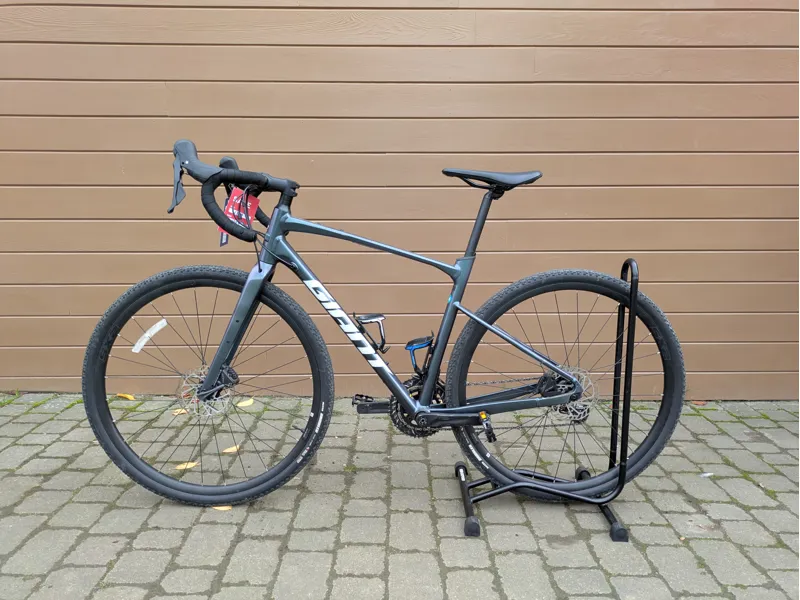

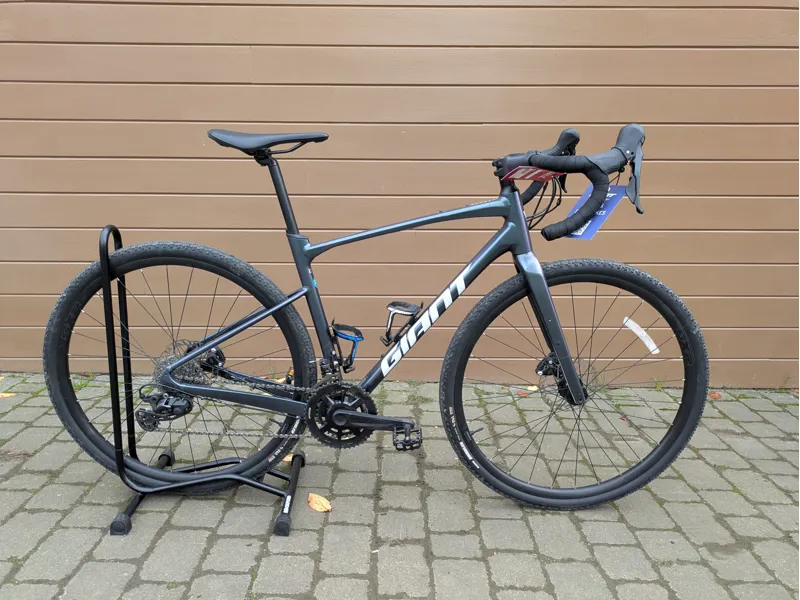

EX DEMO Giant Revolt 0 Blue Dragonfly Size Medium

Season:2024

Brand:Giant

Code:9079001115D

Ex Demo bike - Fully Serviced and maintained by store
For more details or photos, please call on 01522 812518 or email - sales@giant-lincoln.co.uk.
Our team we’ll be happy to help.

Ride roads, gravel or dirt with this versatile aluminium all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tire clearance.

Key Performance Factors
Confident handling
Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.
Tuned compliance
Dropped seatstays with thin tubing absorb road shocks and vibrations. The D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tyres up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

Technical Information

Colours - Gloss Blue Dragonfly
Frame - ALUXX-grade aluminium, 12x142mm thru-axle, disc, flip chip dropout
Fork - Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Shock - N/A
Handlebar - Giant Contact XR D-Fuse, 31.8mm S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Stem - Giant Contact, 8-degree S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Seatpost - Giant D-Fuse, alloy, 14mm offset
Saddle - Giant Approach
Pedals - PEDALS NOT SUPPLIED
Shifters - Shimano GRX RX-610, 2x12
Front Derailleur - Shimano GRX RX-820
Rear Derailleur - Shimano GRX RX-820
Brakes - Shimano BR-RX410 HRD, Giant MPH rotors [F]160mm, [R]160mm
Brake Levers - Shimano GRX RX-610 hydraulic
Cassette - Shimano 105, 11x34
Chain - KMC X12L-1
Crankset - FSA Omega Modular AGX+, 32/48 S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom Bracket - FSA Mega EXO
Rims - Giant S-X2 Disc wheelset, alloy
Hubs - Giant alloy, 12mm thru-axle
Spokes - Stainless steel
Tyres - Maxxis Rambler, 700x40c, tubeless
Extras - Factory tubeless set up
Max Tyre Clearance - 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position
Max Chainring Size - SRAM Wide 2x 43-30, 1x 46T. SRAM Road 2x 52-39, 1x 52T. Shimano Road 2x 52-36. GRX 2x 48-31, 1x 42T

Sizing Information

Size	Height
M	169 - 181cm

		M
		SHORT\|LONG
A	Seat Tube Length(MM)	470
B	Seat Tube Angle	73.5°
C	Top Tube Length(MM)	560
D	Head Tube Length(MM)	150
E	Head Tube Angle	71.5°
F	Fork Rake(MM)	50
G	Trail(MM)	68.0\|72.0
H	Wheelbase(MM)	1030\|1040
I	Chain Stay Length(MM)	430\|440
J	Bottom Bracket Drop(MM)	80\|81
K	Stack(MM)	586
L	Reach(MM)	387
M	Stand Over Height(MM)	752\|759
N	Handlebar Width(MM)	440
O	Stem Length(MM)	70
P	Crank Length(MM)	172
Q	Wheel Size	700x 42C \|
