EX DEMO Giant Revolt Advanced Pro 1 Mars Size Medium

Season:2021

Brand:Giant

Code:2112013145D

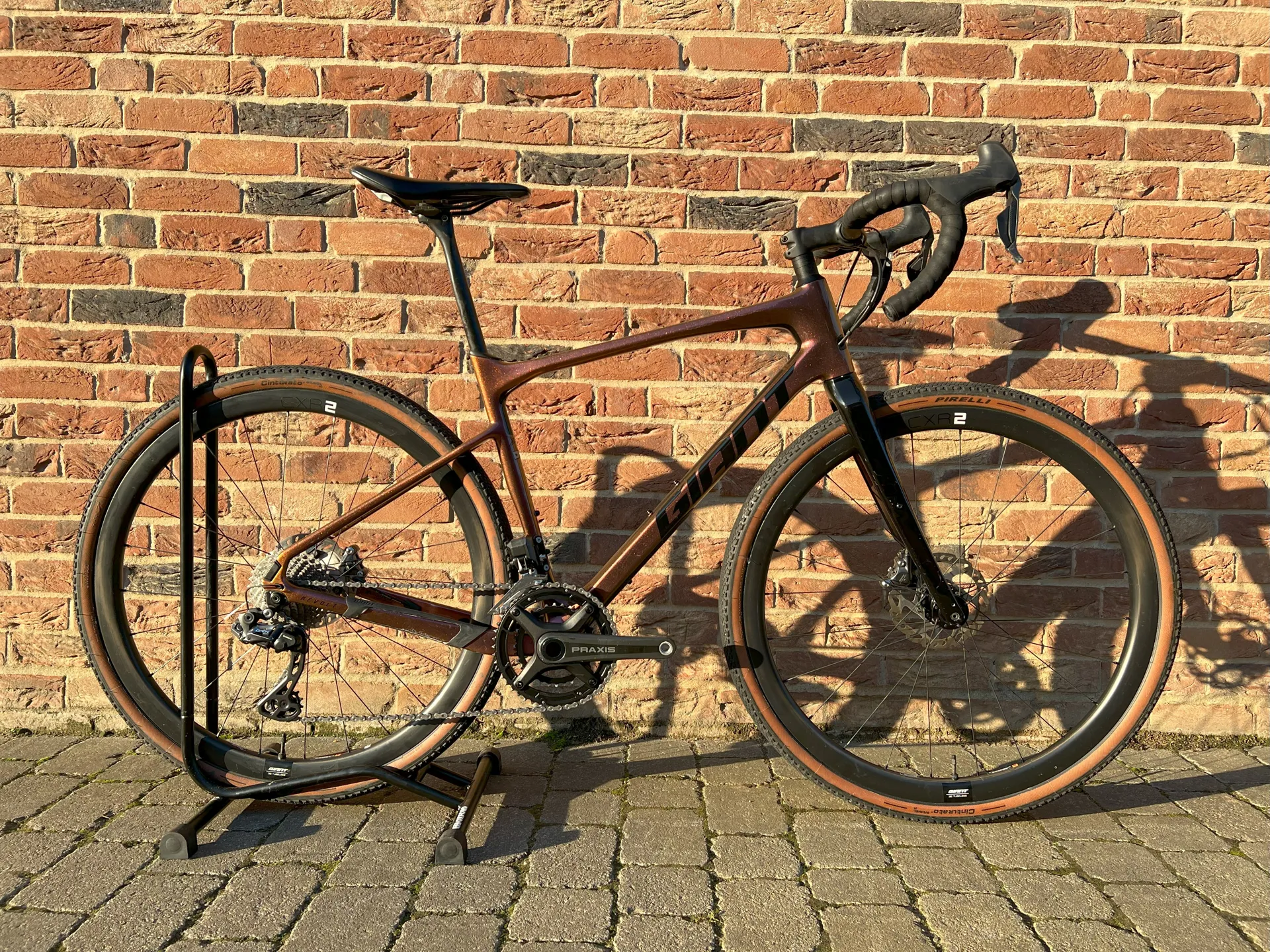

EX DEMO Giant Revolt Advanced Pro 1

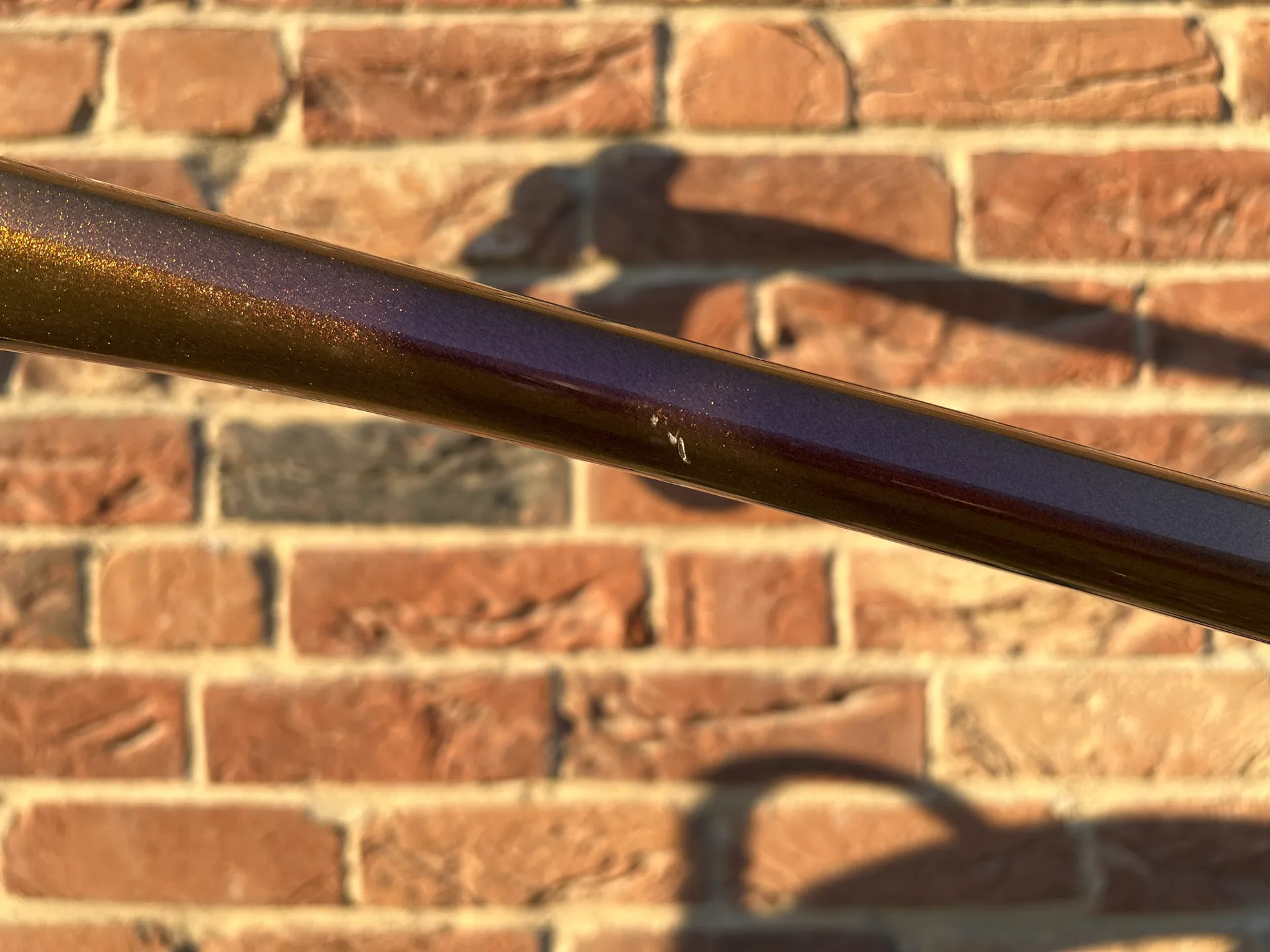

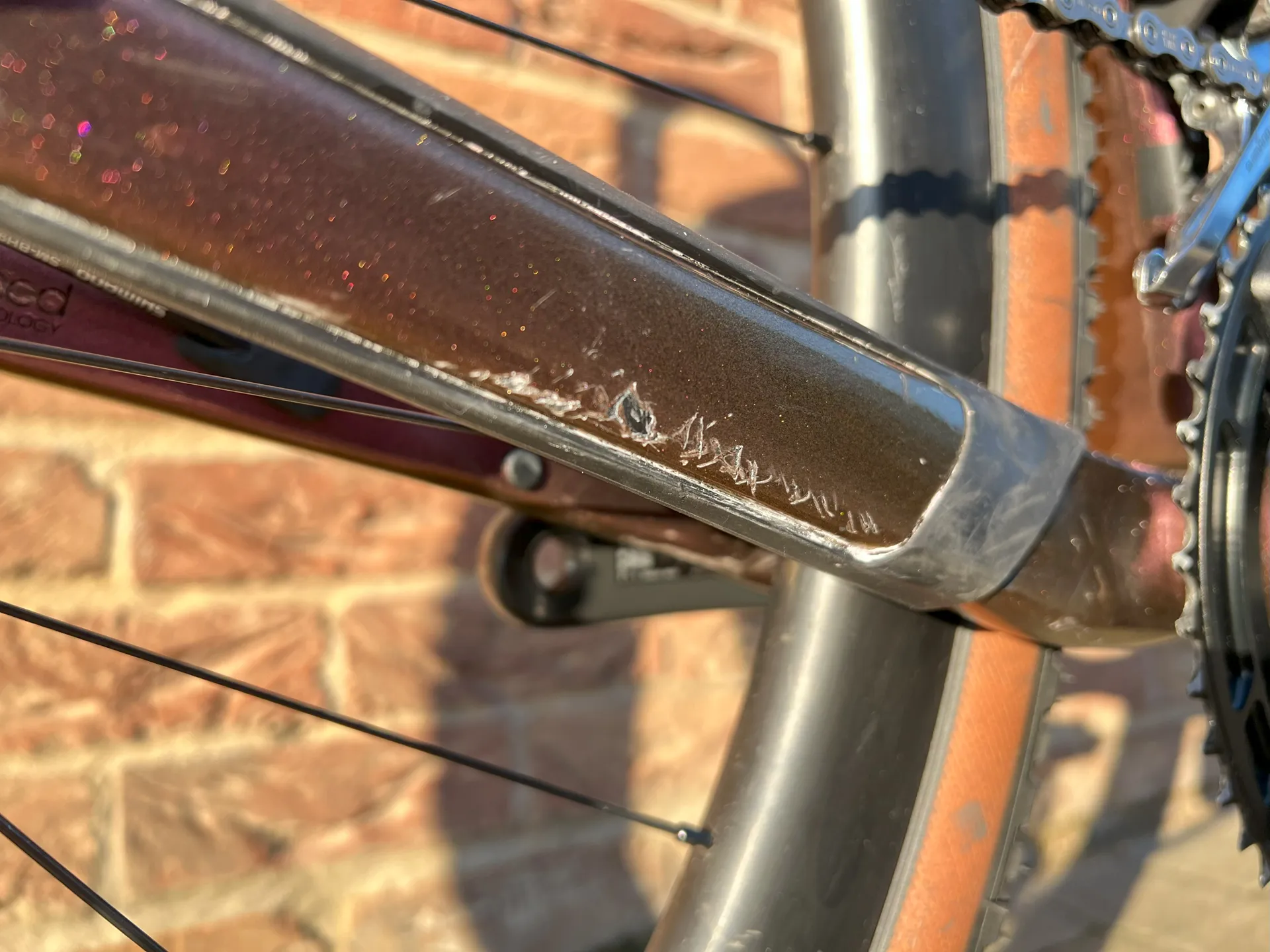

This bike has been used by a staff member for two years.
For more details on condition please email [email protected] or pop in store

EX DEMO Giant Revolt Advanced Pro 1 - Ultimate Gravel Bike for Speed and Control

Discover the EX DEMO Giant Revolt Advanced Pro 1, a high-performance gravel bike designed for both flat-out speed and smooth control. Lightweight, compliant, and ultra-efficient, this bike excels on roads, gravel, and dirt. Built for endurance and confident handling, it’s perfect for daily rides and big weekend adventures.

This all-rounder features a lightweight Advanced composite frameset with gravel-specific geometry. Tackle long, challenging rides with greater control and less fatigue, thanks to the full composite fork, D-Fuse seatpost, and Contact XR D-Fuse handlebar that absorb shocks and vibrations. The frame is integrated for disc brakes and accommodates larger tyres up to 45mm for smooth rides over rough terrain. Additional features include the X-Defender downtube protector and a smart mount system for racks and accessories, ensuring you’re ready for any gravel adventure.

Key Performance Factors:

  • Versatile Gravel Geometry:Endurance positioning and shorter chainstays for precise handling, agility, and control.
  • Tuned Compliance:Contact SLR D-Fuse handlebar and D-Fuse seatpost absorb shocks without sacrificing stiffness.
  • All-Rounder Efficiency:Advanced composite frame maximizes pedaling power for a smooth, fast ride on varied surfaces.
Technical Information
Colours - Gloss Chameleon Mars

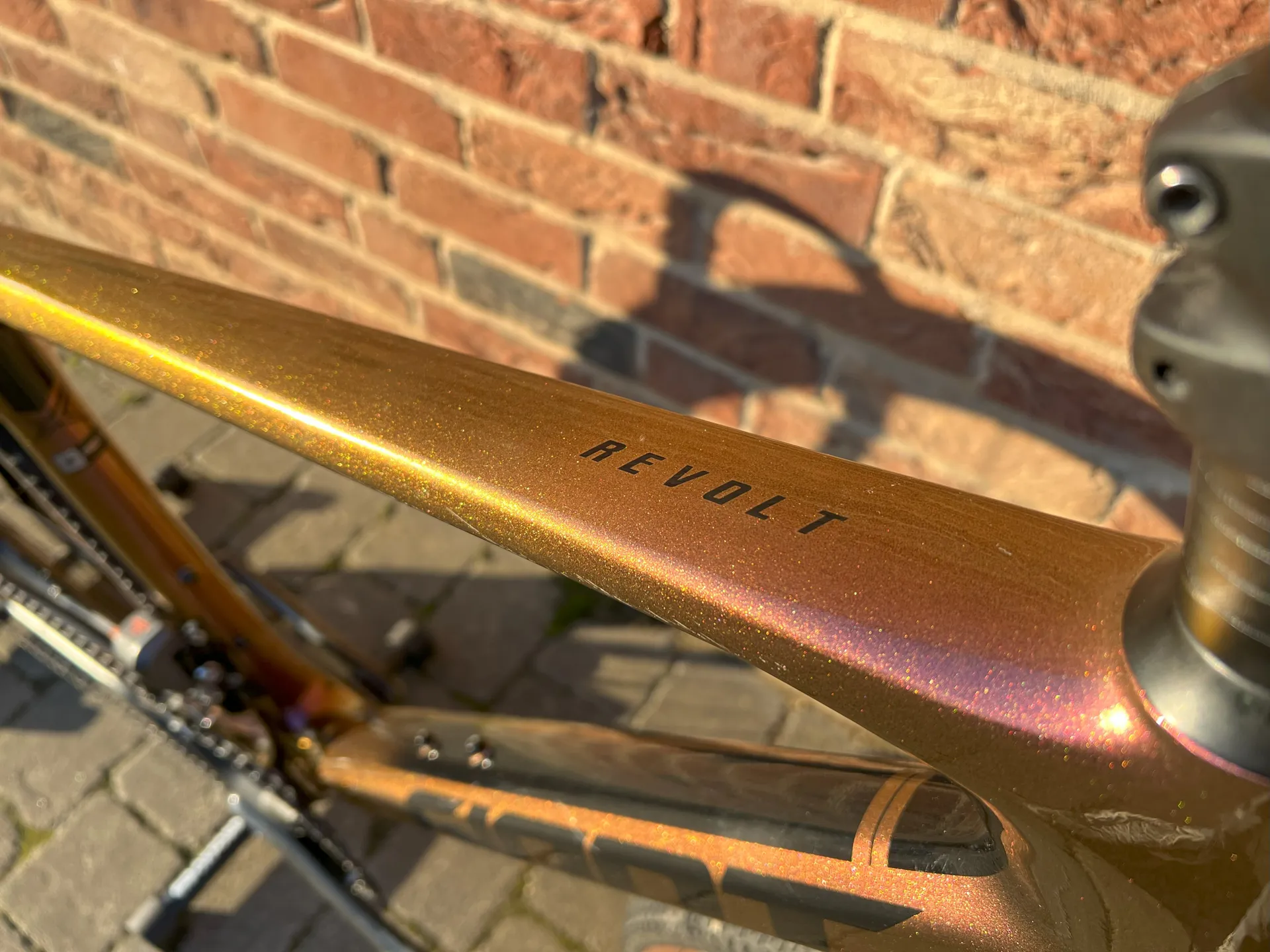

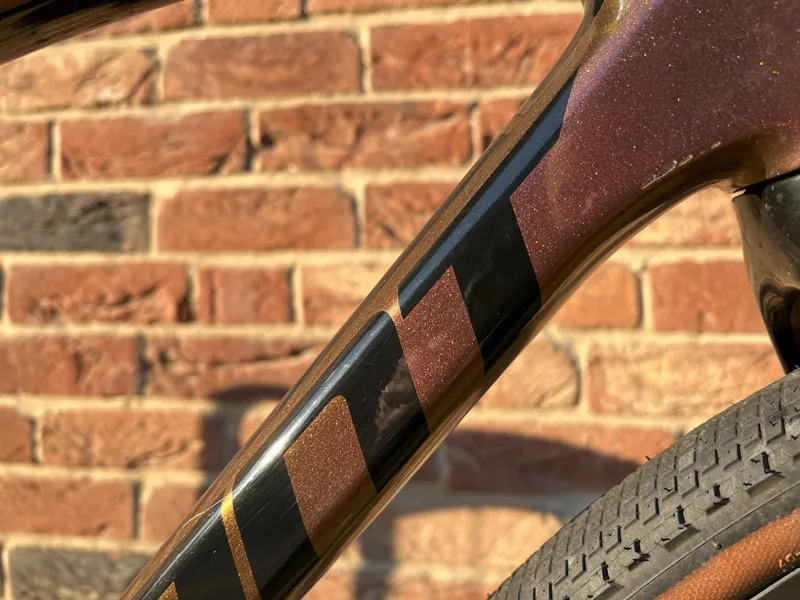

Frame - Advanced-Grade Composite, 12x142mm thru-axle, disc. Compatible with fenders

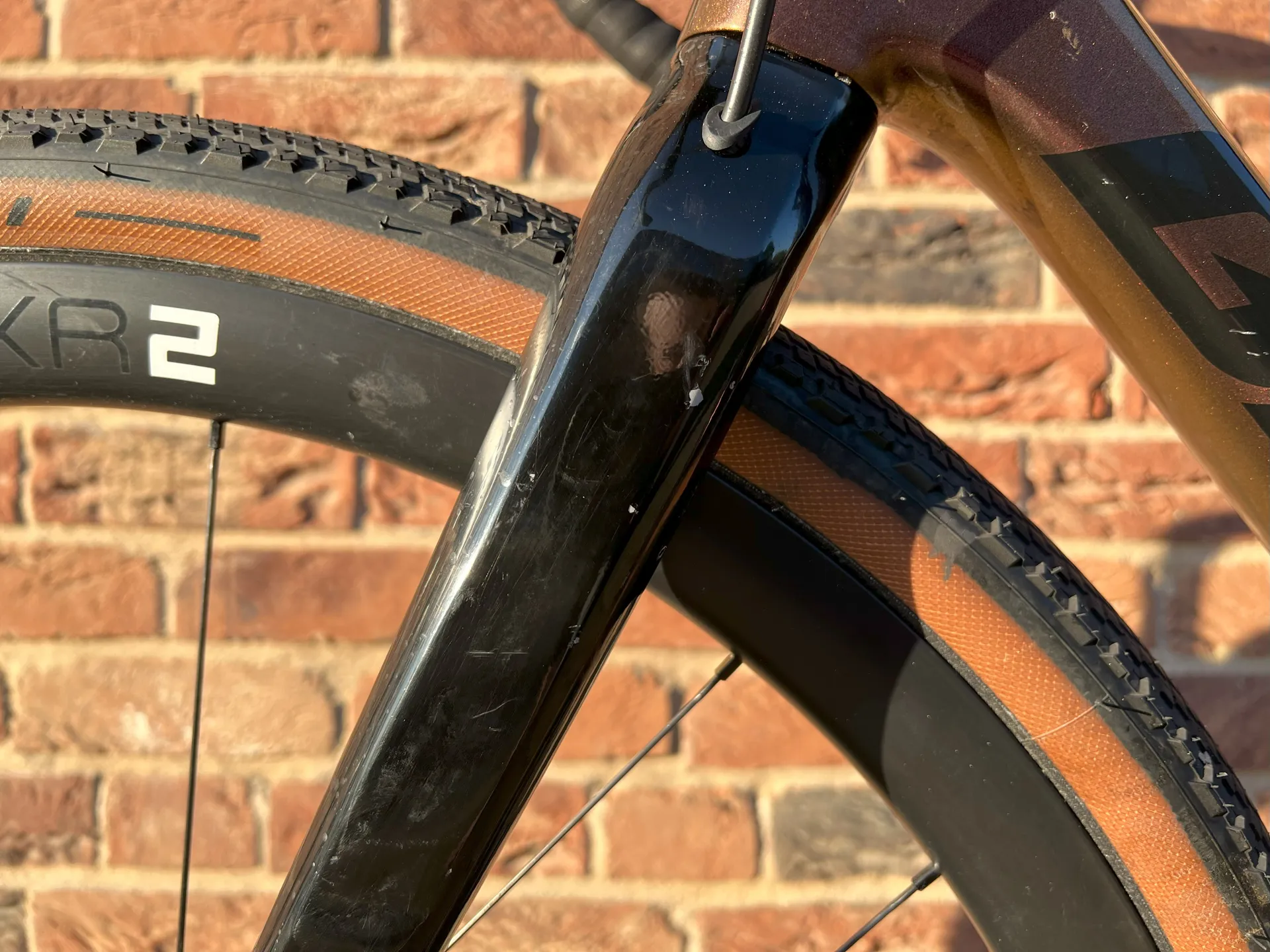

Fork - Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Shock - N/A
Handlebar - Giant Contact SLR XR D-Fuse, 31.8
Stem - Giant Contact, 8-degree
Seatpost - Giant D-Fuse SLR, composite
Saddle - Giant Approach
Pedals - PEDALS NOT SUPPLIED

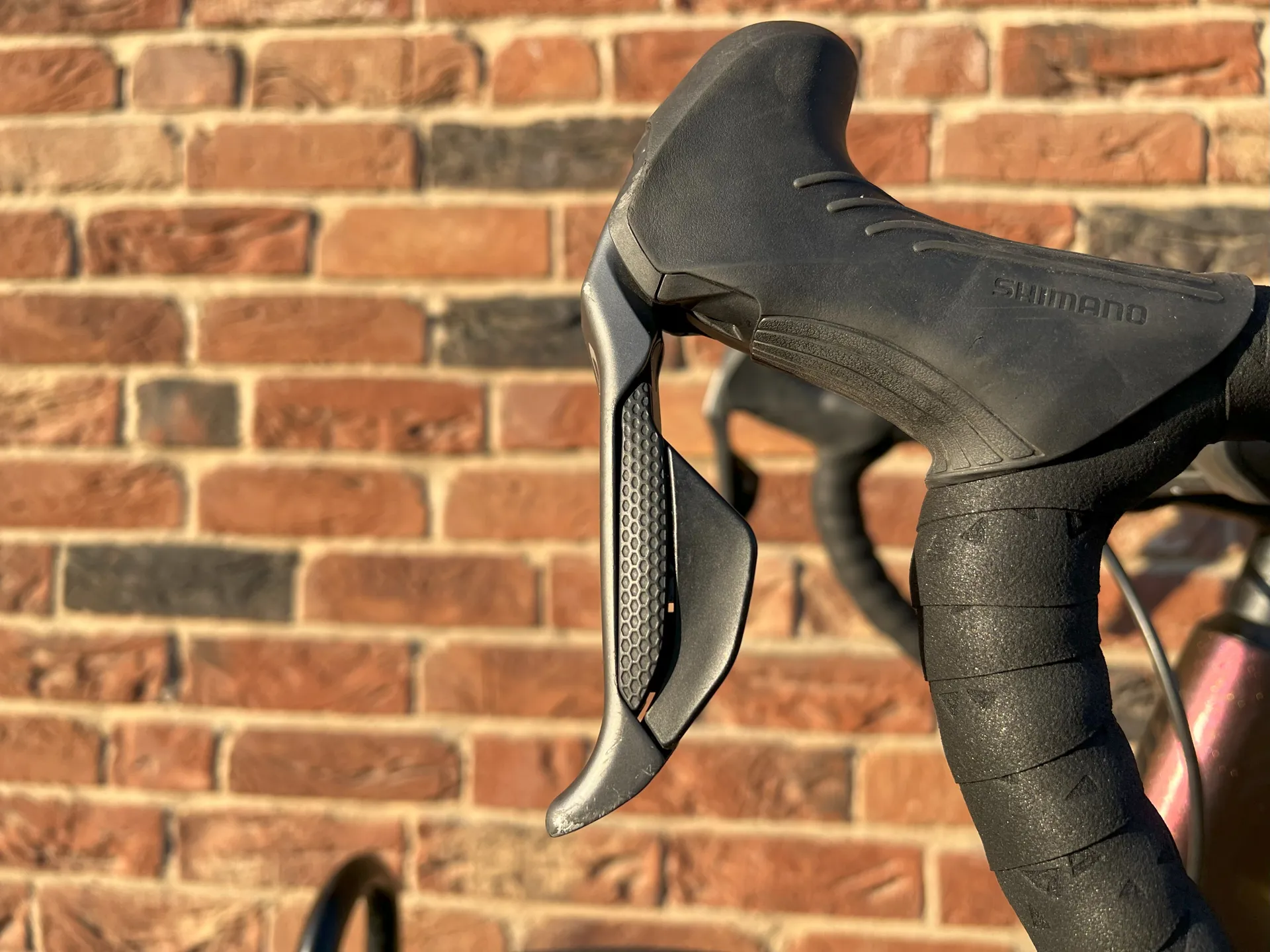

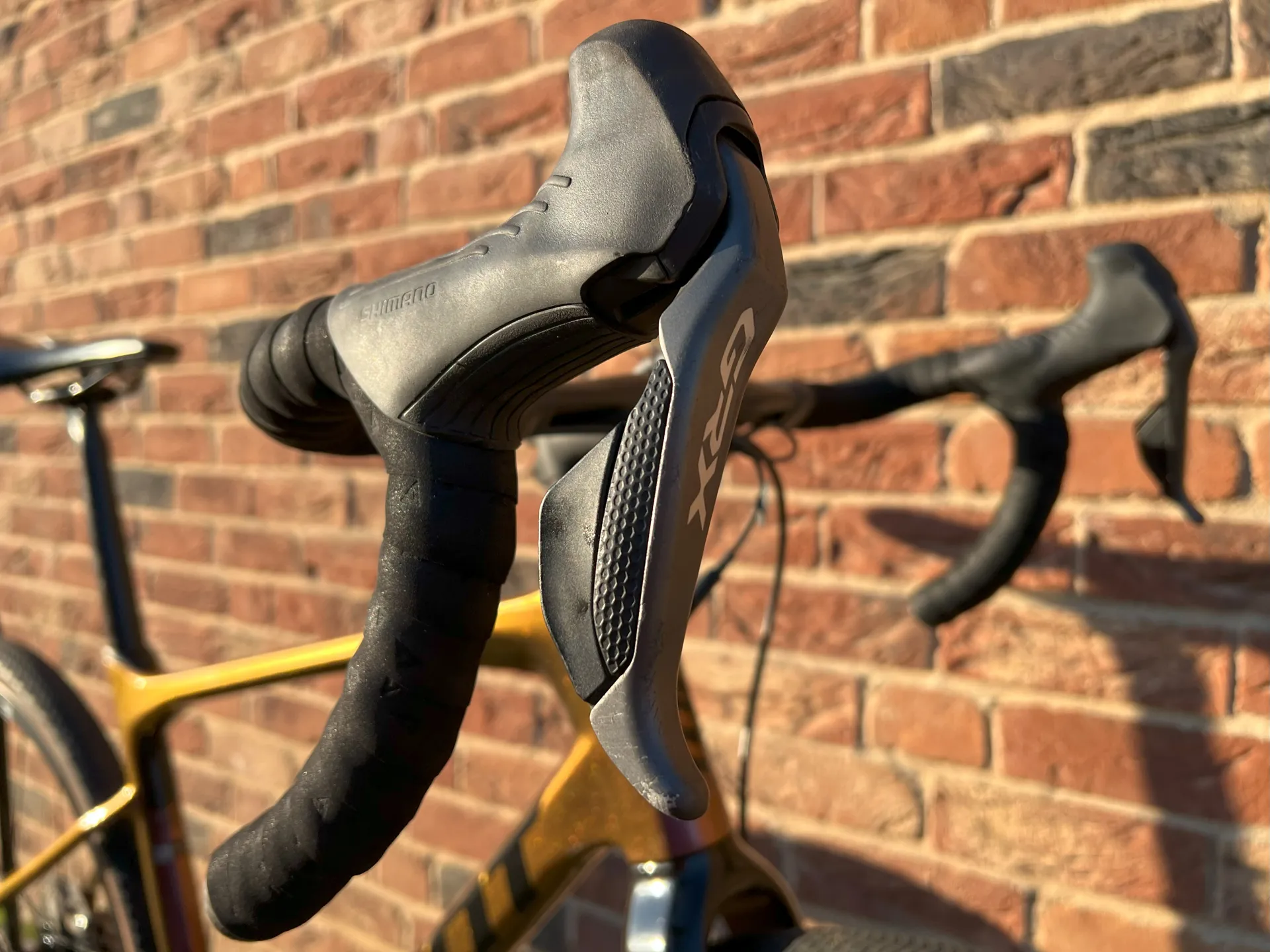

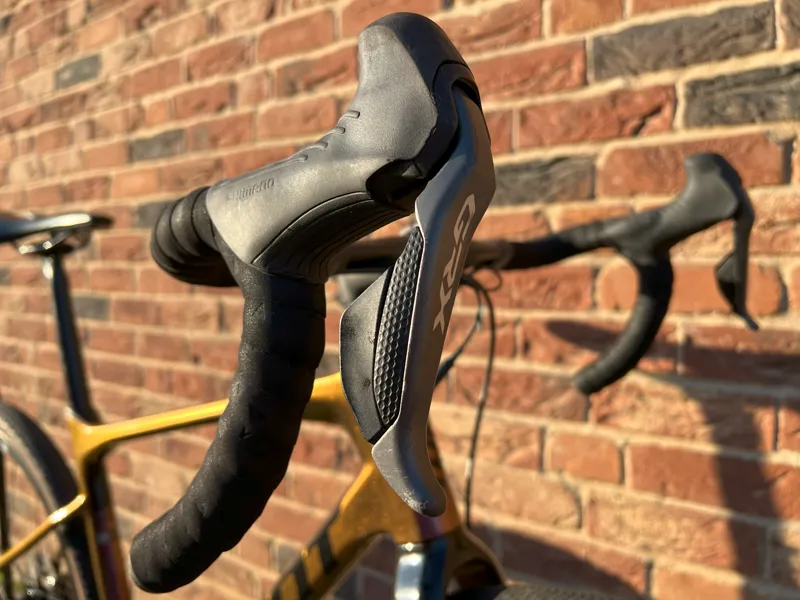

Shifters - Shimano GRX RX-815 Di2

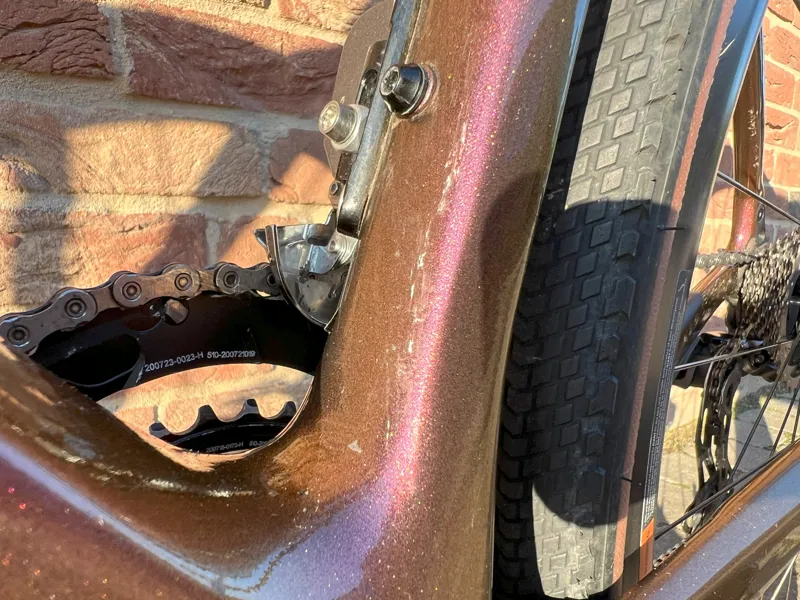

Front Derailleur - Shimano GRX RX-815 Di2

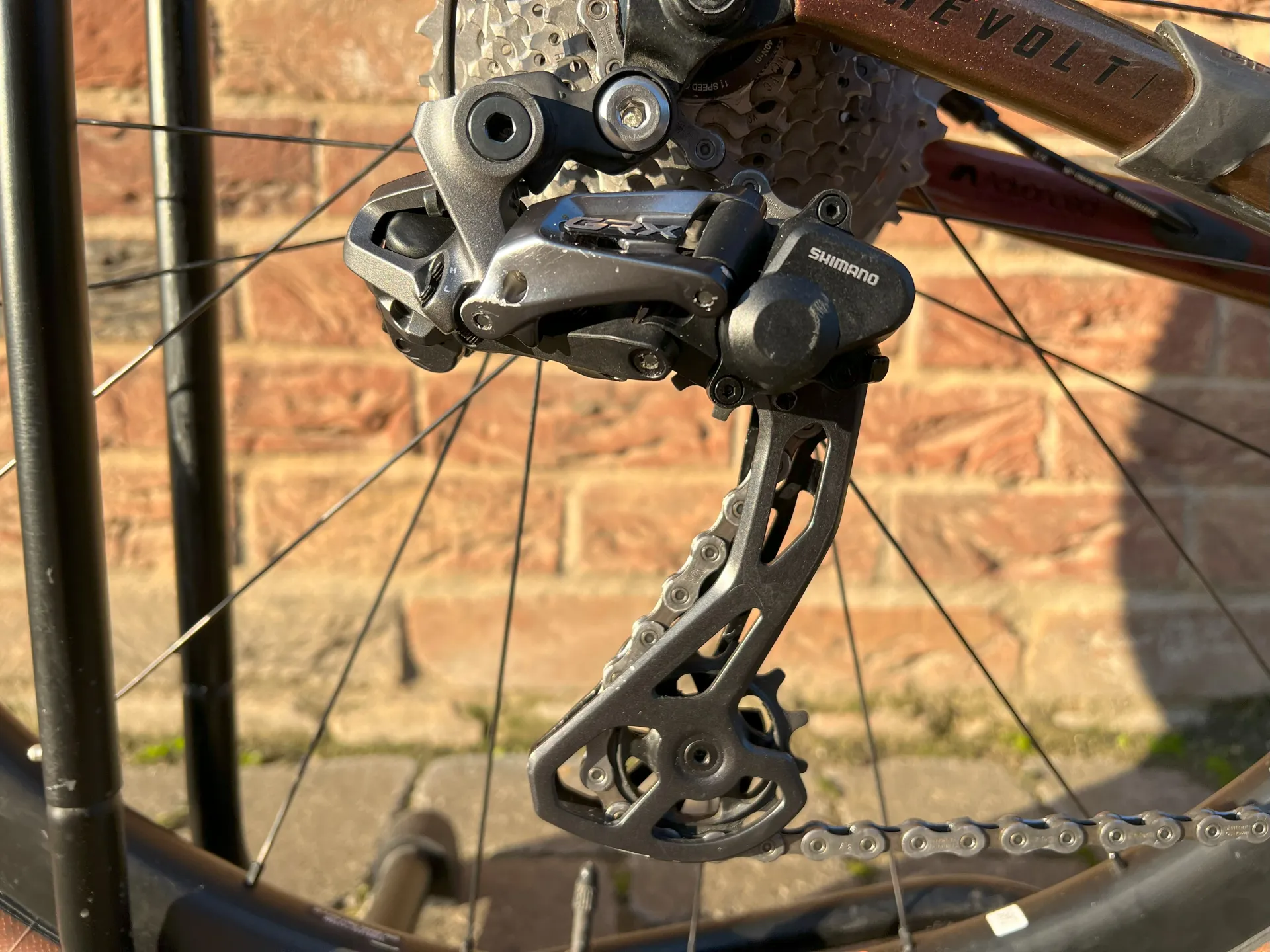

Rear Derailleur - Shimano GRX RX-815 Di2

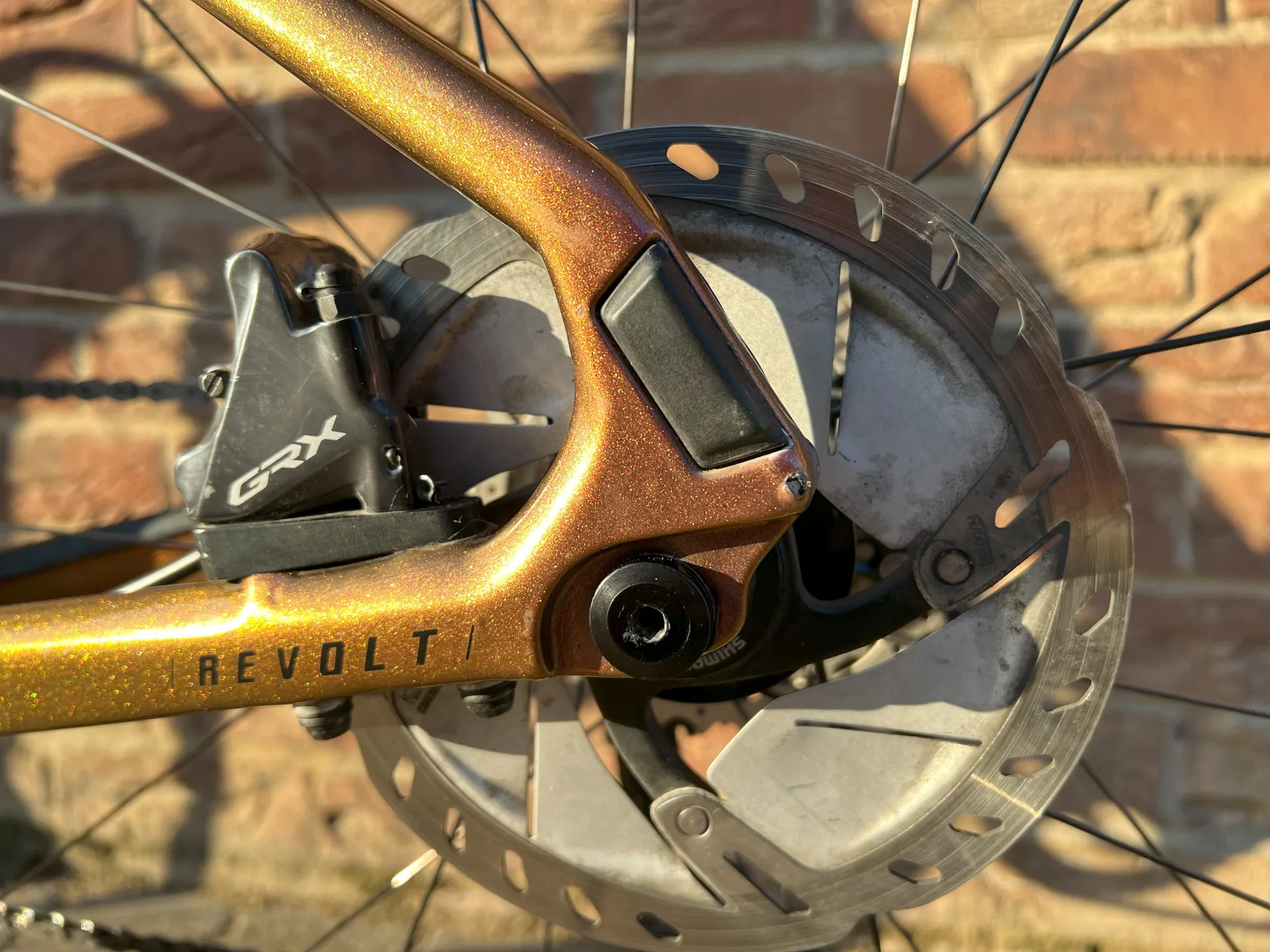

Brakes - Shimano GRX RX-810 hydraulic
Brake Levers - Shimano GRX RX-810 hydraulic
Cassette - Shimano CS-HG800, 11x34
Chain - KMC X11SL-1

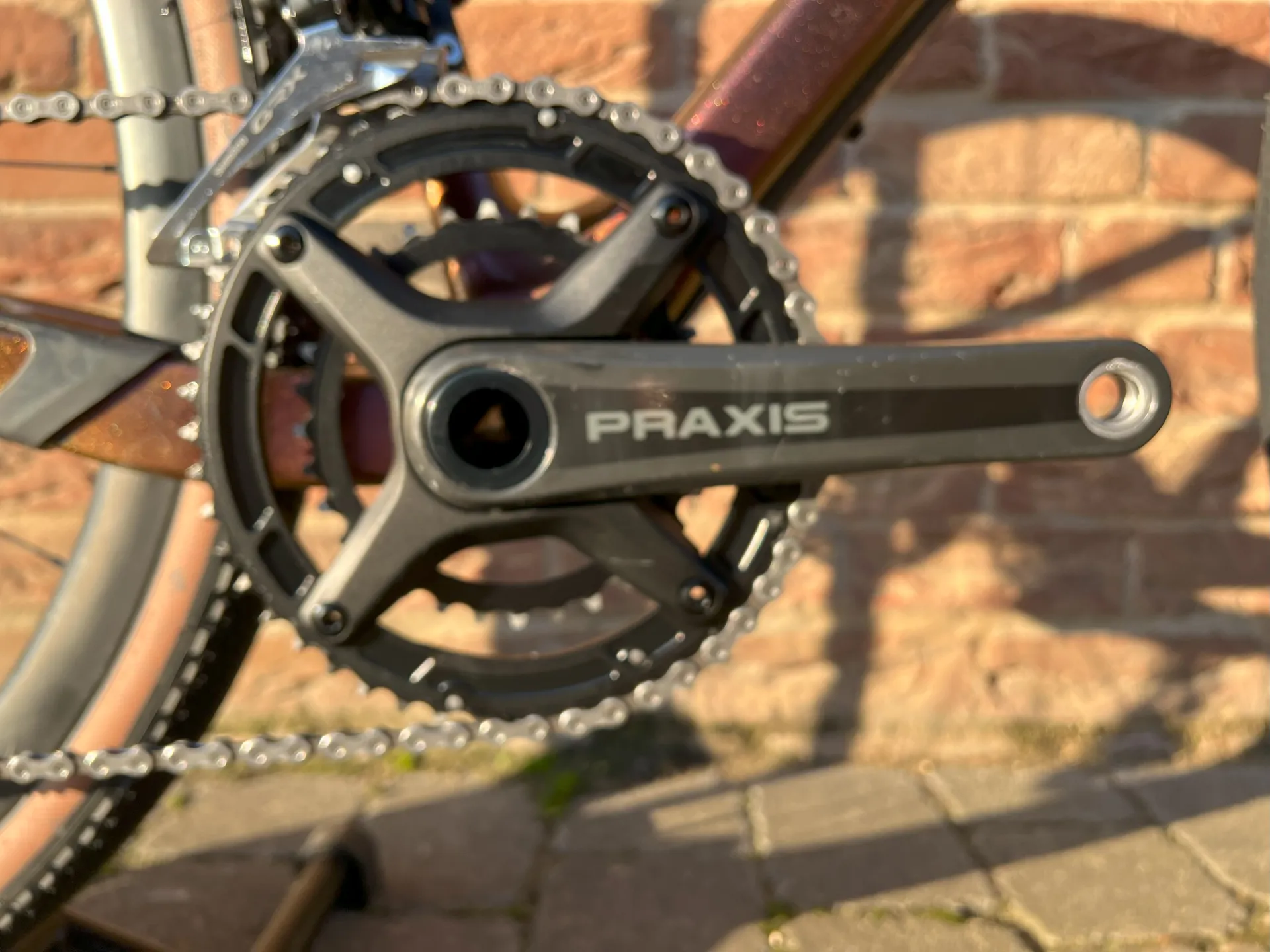

Crankset - Praxis Zayante X Carbon, 32/48
Bottom Bracket - Praxis, press fit

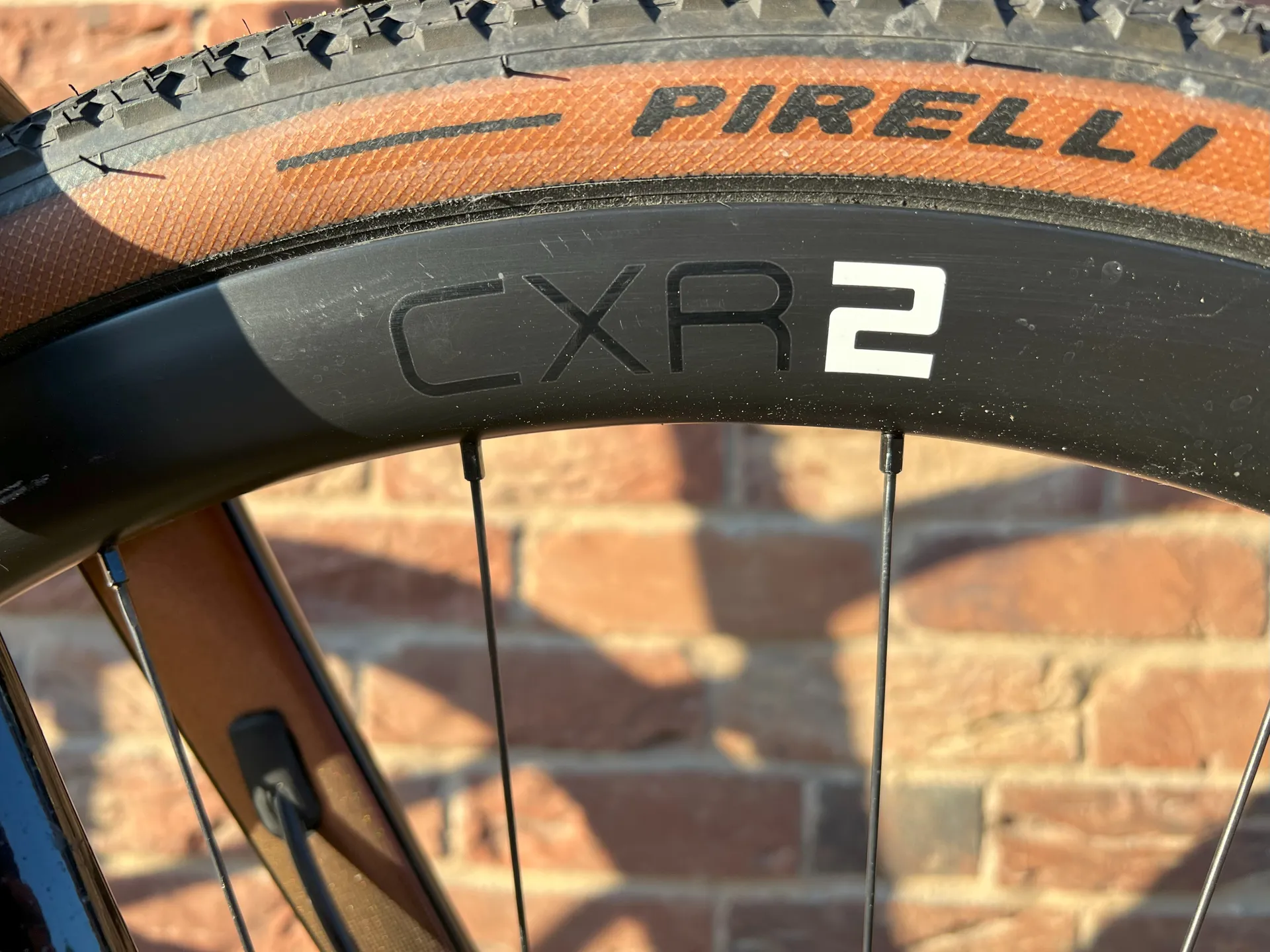

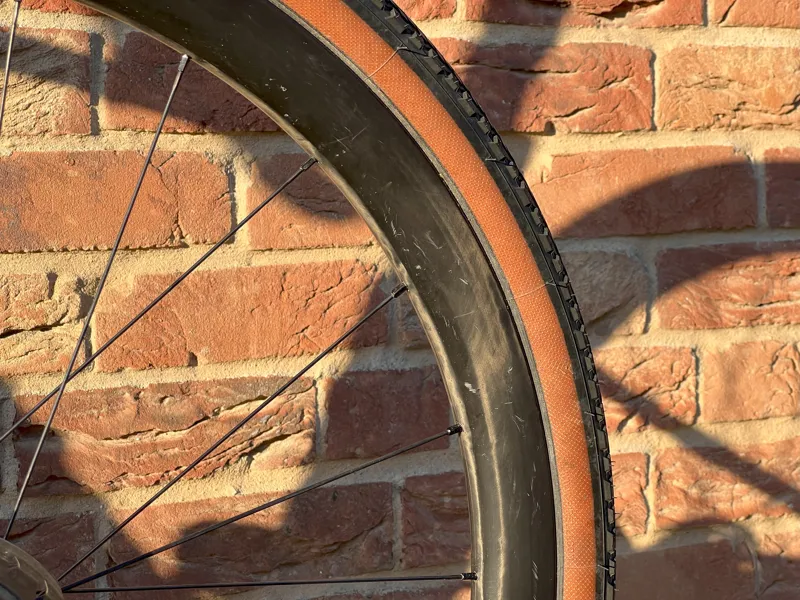

Rims - Giant CXR-2 Carbon Disc WheelSystem, 35mm
Hubs - Giant CXR-2 Carbon Disc WheelSystem
Spokes - Giant CXR-2 Carbon Disc WheelSystem
Tyres - Pirelli Cinturato H 40mm
Fender/Chainguard - Compatible with RGX 45 fender (requires RGX Seat Tube Strap Mounting Kit, part 540000042, both sold separately)
Sizing Information
Size Medium - 5ft 8in - 5ft 11in (172 - 180cm)

bike diagram with measurements referenced in table that follows

SMMLLXL
ASeat Tube Length(mm)450470490510530
BSeat Tube Angle73.5°73.5°73.0°73.0°73.0°
CTop Tube Length(mm)540550565575590
DHead Tube Length(mm)135150165180195
EHead Tube Angle70.5°70.5°71.0°71.0°71.0°
FFork Rake(mm)5050505050
GTrail(mm)74.174.170.770.770.7
HWheelbase(mm)10201031103610461062
IChain Stay Length(mm)425425425425425
JBottom Bracket Drop(mm)7070707070
KStack(mm)558572588602616
LReach(mm)375381385391402
MStand Over Height(mm)734752768786803
NHandlebar Width(mm)420440440460460
OStem Length(mm)8090100100100
PCrank Length(mm)170172.5172.5175175
QWheel Size700C700C700C700C700C
