Faster up the climbs, longer loops, more singletrack fun on any given day.

Giant

2022 Giant Trance X E+ 3 Pro 29er eMountain Bike in Black Diamond

£4,999.00

Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns

Any item (apart from nutrition products) can be returned to us within 28 days of purchase, given the item has not been used or fitted, and is returned in its original packaging with valid proof of purchase.

Online purchases can be returned either in store at Giant Lincoln or returned to us via post.

Giant Lincoln Returns address:

Returns
Giant Store Lincoln
Doddington Hall
Doddington
LN6 4RU

Giant Tugby Returns Address:

Returns
Giant Tugby
Wood Lane
Tugby
LE7 9WE

Customer Returns Form

If you wish to cancel, return or exchange an order please print and complete the returns form below. Place the form inside your return package along with your receipt.

Return Terms & Conditions

Items must be returned in their original packaging and be unused. Refunds will be issued once the products have been received and inspected.

Click & Collect customers: should you decide your item is not right for you, it can be exchanged or refunded straight away in store, or you still have up to 28 days to return it if you take the item away.

If the items we have sent you are faulty, damaged or not as we described, we will cover any associated re-delivery/return postage costs.

Refunds will be processed using the same method of payment used for the original purchase.

We are unable to offer a refund without a valid receipt.

Please see the Terms & Conditions page for full guidance.

Bike Returns – Change of Mind

If you decide you no longer want your bike after delivery, that’s okay — we understand that sometimes things just don’t feel quite right.
However, if the bike is not faulty and has simply been unwanted or ordered in error, you’ll be responsible for returning it to us in unused, original condition (including all packaging, manuals, and accessories).

We can help arrange a collection if needed, but please note that a return charge of £80 will apply to cover the cost of collection and handling. This amount will be deducted from your refund.

Refunds will only be processed once the bike has been received back and inspected. If the bike shows any signs of use or damage beyond what’s necessary to check it over, we may reduce the refund to reflect any loss in value.

This policy does not affect your statutory rights if your bike is faulty or not as described — in those cases, we’ll arrange collection or replacement at no cost to you.

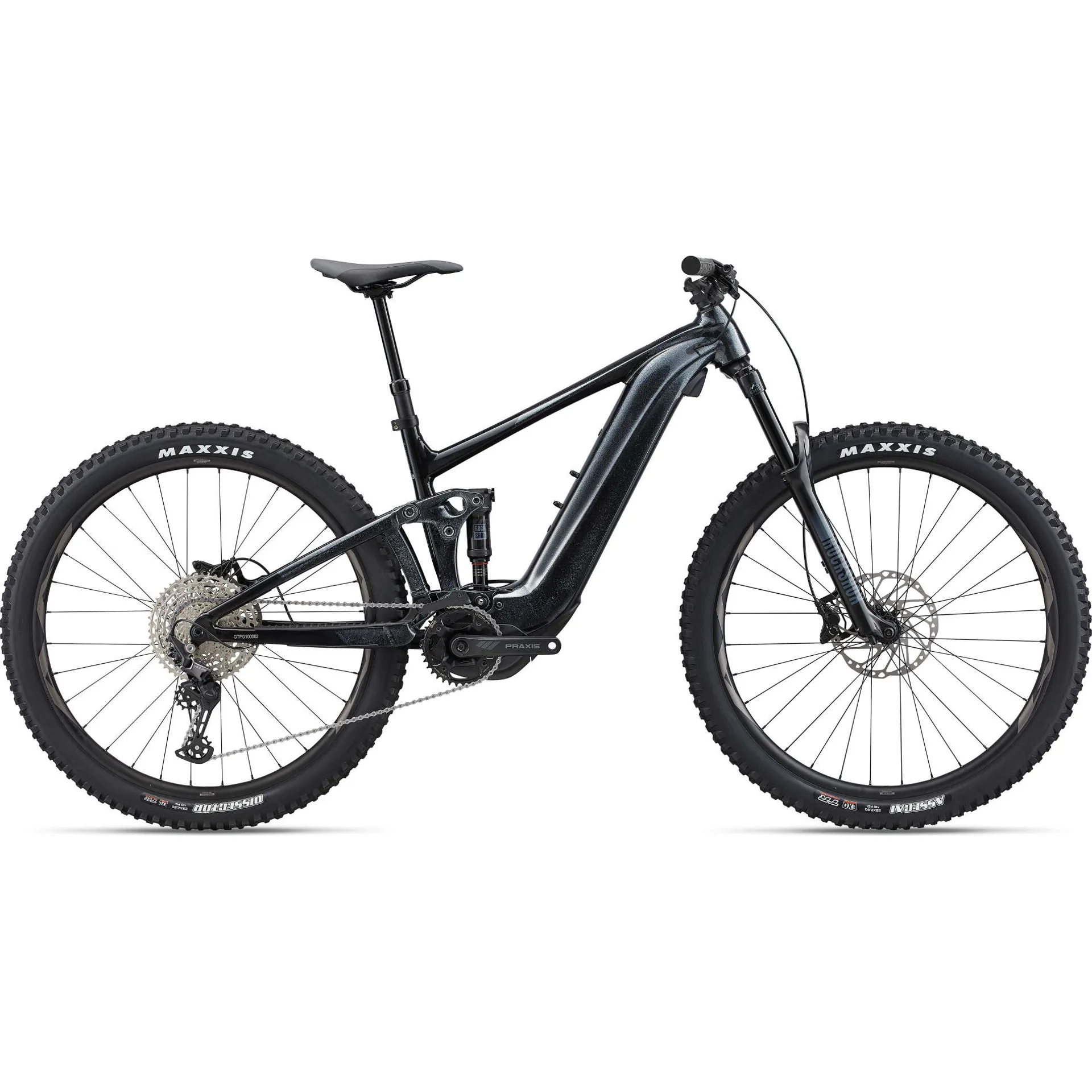

2022 Giant Trance X E+ 3 Pro 29er eMountain Bike in Black Diamond

Season:2022

Brand:Giant

Code:2213331BLKDiamond

Faster up the climbs, longer loops, more singletrack fun on any given day.

Free yourself to push your trail riding to the next level with this powerful, fun and smooth-riding ebike.

Features:

Smooth, powerful support - SyncDrive Pro motor delivers 85Nm of torque and tunable support ratios up to 400 percent. Smart Assist technology creates smooth pedal assistance that engages instantly when human power is applied, giving you reliable performance on steep climbs and at low speeds.
Trail-riding control - Optimized Maestro suspension for 29-inch wheels with 140mm rear/ 150mm front travel to roll over rough terrain with balance and stability, giving you more momentum for technical climbs and the confidence to fly on fast, rugged singletrack descents.
Adaptable to the terrain - New flip chip feature lets you change the headtube and seattube angles, along with the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style. You can choose the low position for fast, aggressive terrain, or high for a more XC-oriented rider position.

Technical Information

Motor
SyncDrive Pro, 85Nm, powered by Yamaha
Controller
RideControl Ergo 3, grip integrated
Display
RideControl GO, frame integrated LED displayANT+ Wireless display compatible
Battery
EnergyPak Smart 625Wh, EnergyPak Plus range extender compatible
Charger
EnergyPak 4A smart charger compact
Sizes
S, M, L, XL
Colours
Gloss Black Diamond
Frame
ALUXX SL-Grade Aluminum, Advanced Forged Composite linkage, 140mm Maestro Suspension System, 'Boost' 148x12 UDH derrailleur hanger, Giant EnergyPak Plus Range Extender Compatible
Fork
RockShox 35 Gold RL DebonAir, 150mm travel, 44mm offset, MotionControlTM rebound and lockout control, 15x110 Boost, Maxle Stealth, e-MTB optimised
Shock
Rock Shox Deluxe R, 185x52.5mm Trunnion mount, custom tuned
Handlebar
Giant Contact 35 Trail, 35x780mm
Grips
Giant Tactal Pro-E, single lock-on
Stem
Giant Contact SL 35
Seatpost
Giant Contact Switch, dropper, 30,9mm (S:125, M: 150, L/XL:170)
Saddle
Giant Romero Trail
Pedals
Flat pedal
Shifters
Shimano Deore
Front Derailleur
MRP HD2 co-moulded chain guide
Rear Derailleur
Shimano Deore 12-speed, Shadow+
Brakes
Shimano BR-M420, 4-piston, hydraulic disc, 203mm
Brake Levers
Shimano Deore BL-M4100, I-spec EV
Cassette
Shimano CS-M6100-12, 10-51T, 12-speed
Chain
KMC e.12 Turbo, EcoProteq, e-bike optimised
Crankset
Praxis WaveTM 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (S:160, M/L: 165, XL:170)
Bottom Bracket
-
Rims
Giant AM 29", Tubeless ready, 30mm inner width
Hubs
Shimano MT410 Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle
Spokes
Sapim E-Lite [R] Race [F]
Tyres
Maxxis Assegai 29x2.6" foldable, Tubeless, EXO [F]Maxxis Dissector 29x2.6" Foldable, Tubeless, EXO+ [R]
Extras
Tubeless kit (liquid, valves, levers, manual, tool)
Lighting
Optional:- Giant Recon series e-bike lights available and direct connectable
Lock
Torx 25 Battery Lock with built-in Torque limiter
Weight
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Sizing Information

Size	Height
S	163 - 174cm
M	171 - 182cm
L	179 - 190cm
XL	187 - 198cm

bike diagram with measurements referenced in table that follows

		S	M	L	XL
		LOW\|HIGH	LOW\|HIGH	LOW\|HIGH	LOW\|HIGH
A	SEAT TUBE LENGTH(mm)	400	425	450	475
B	SEAT TUBE ANGLE	76.0°\|76.7°	76.0°\|76.7°	76.0°\|76.7°	76.0°\|76.7°
C	TOP TUBE LENGTH(mm)	577\|575	610\|605	637\|635	667\|665
D	HEAD TUBE LENGTH(mm)	95	100	110	120
E	HEAD TUBE ANGLE	65.7°\|66.5°	65.8°\|66.5°	65.8°\|66.5°	65.8°\|66.5°
F	FORK RAKE(mm)	44	44	44	44
G	TRAIL(mm)	117\|122.4	117\|122.4	117\|122.4	117\|122.4
H	WHEELBASE(mm)	1205\|1206	1239\|1237	1268\|1269	1300\|1301
I	CHAIN STAY LENGTH(mm)	473\|473	473\|473	473\|473	473\|473
J	BOTTOM BRACKET DROP(mm)	30\|20	30\|20	30\|20	30\|20
K	STACK(mm)	606\|601	611\|605	621\|614	630\|624
L	REACH(mm)	439\|447	457\|462	482\|489	510\|517
M	STAND OVER HEIGHT(mm)	783\|789	775\|784	763\|770	775\|782
N	HANDLEBAR WIDTH(mm)	780	780	780	780
O	STEM LENGTH(mm)	40	40	50	50
P	CRANK LENGTH(mm)	160	165	165	170
Q	WHEEL SIZE	29"	29"	29"	29"
