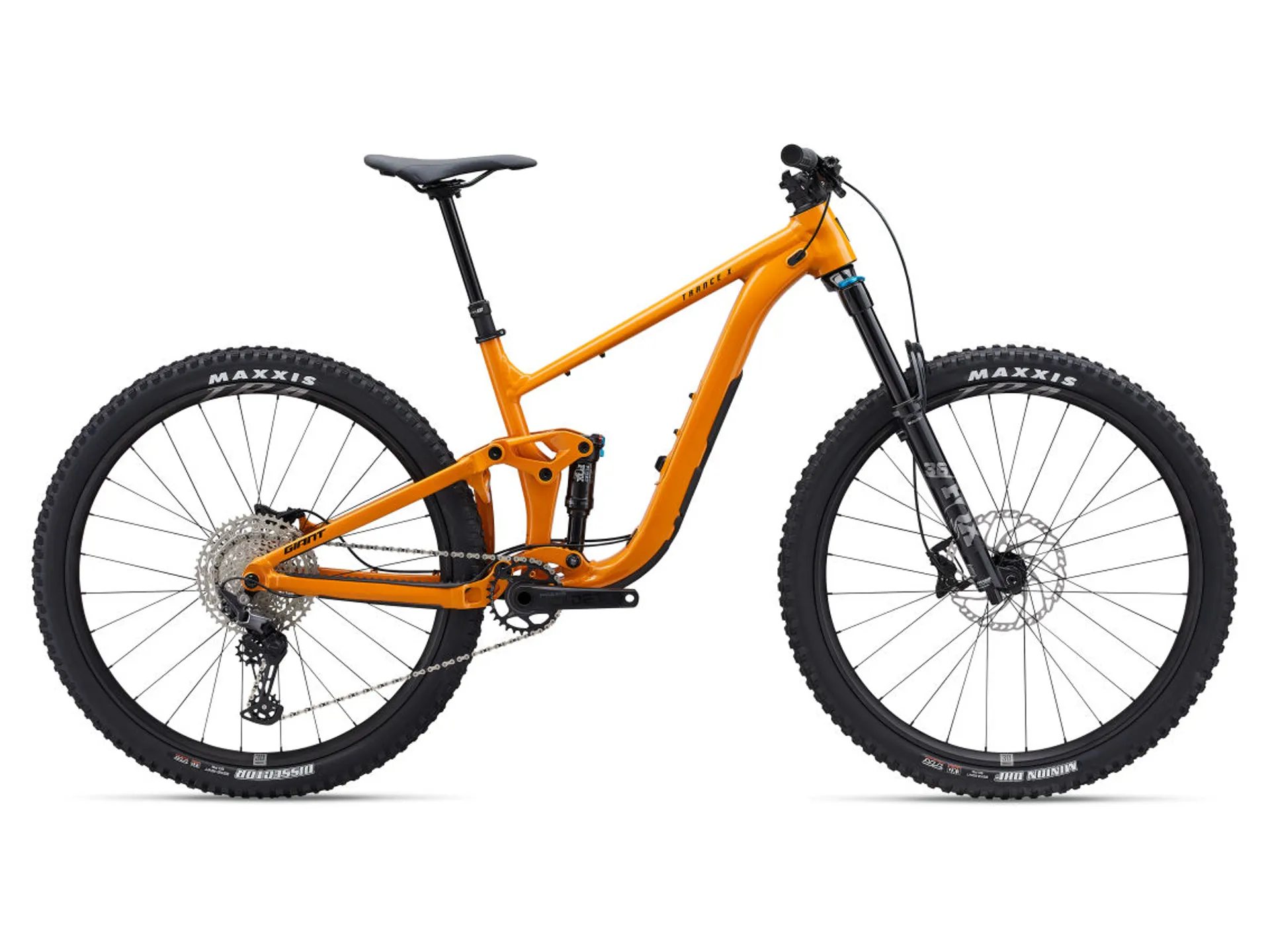

2024 Giant Trance X 2 Mens Mountain Bike in Orange

Season:2024

Brand:Giant

Code:9110002BRNGry

FIND YOUR FLOW ON TECHNICAL TRAILS. WITH ADJUSTABLE GEOMETRY, THE OPTION TO CHANGE REAR WHEEL SIZE, AND A NEW 140MM MAESTRO REAR SUSPENSION SETUP, THIS VERSATILE TRAIL BIKE STEAMROLLS SINGLETRACK WITH CONFIDENCE AND CONTROL.
KEY PERFORMANCE FACTORS
Updated suspension
A new Maestro rear suspension system gives trail riders 140mm of rear travel. The trunnion mount shock and Advanced Forged Composite rocker arm combine for a longer stroke that has a smooth, active feel, plus greater stiffness in the chassis for precision control. The rear suspension is paired with a 150mm travel fork, providing superior confidence and control on technical singletrack.

Adjustable trail geometry
A three-position Maestro flip chip lets riders dial in frame geometry for their riding style and terrain. The high setting adds more ground clearance, a good option for tight, technical terrain. In the low setting, the head tube gets slacker and the bottom bracket drops, ideal for confident handling at higher speeds. The middle position is neutral. In addition, a new headset flip chip adjusts reach so that riders can easily achieve their preferred positioning.

Rear wheel options
All models come with 29-inch front and rear wheels, but the flip chip lets you opt for a mixed wheel setup including a 27.5 rear. The stock 29-inch rear wheel optimises stability and roll-over capabilities, while a 27.5 delivers a more agile, snappier feel and more saddle-to-tire clearance in the rear. Some riders favour this “mullet” setup for riding steep, technical terrain.

Technical Information

Sizes - S, M, L, XL

Colours - Gloss Sandstorm

Frame - ALUXX SL-grade aluminium front and rear triangles, 140mm Maestro suspension, flip chip - Maestro 3, flip chip - headset, 12x148mm thru-axle

Fork - Fox 36 Float Rhythm, GRIP damper, 44mm offset, 150mm, 15x110 Kabolt, custom tuned for Giant

Shock - Fox Float Performance, 185/52.5, custom tuned for Giant

Handlebar - Giant Contact TR35, 780x35mm, 20mm rise

Grips - Giant Tactal Pro Single S:120mm, M:120mm, L:130mm, XL:130mm

Stem - Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm

Seatpost - Giant Contact Switch Adjustable, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm

Saddle - Giant Romero

Pedals - PEDALS NOT SUPPLIED

Shifters - Shimano Deore, 1x12

Front Derailleur - N/A

Rear Derailleur - Shimano Deore

Brakes - Shimano Deore BR-MT520, hydraulic, Shimano RT-66 rotors [F]203mm, [R]180mm

Brake Levers - Shimano Deore BL-MT401

Cassette - Shimano Deore, 10x51

Chain - KMC X-12

Crankset - Praxis Cadet, 30t, 55mm chainline

Bottom Bracket - Praxis, press fit

Rims - Giant TRA 2, 29" wheelset, hookless aluxx wheelsystem, 30mm inner width, 40mm outer width

Hubs - [F] Giant MTB alloy, six-bolt [R] Giant MTB alloy, 72t POE (Points of Engagement), six-bolt, MicroSpline driver body

Spokes - Sapim, 28, J-bend

Tyres - [F] Maxxis Minion DHF, 29x2.5 WT, 60 tpi, EXO, TR [R] Maxxis Dissector 29x2.4 WT, 60 tpi, EXO TR, tubeless

Extras - Factory tubeless set up, 2.5" max tyre size, 34t max chainring size

Weight - The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Sizing Information

Size	Height
S	163 - 172cm
M	171 - 180cm
L	179 - 188cm
XL	187 - 198cm

bike diagram with measurements referenced in table that follows

		S	M	L	XL
		LOW\|MID\|HIGH	LOW\|MID\|HIGH	LOW\|MID\|HIGH	LOW\|MID\|HIGH
A	SEAT TUBE LENGTH(mm)	400	425	450	475
A1	SEAT POST INSERTION DEPTH(mm)	280	305	330	355
B	SEAT TUBE ANGLE	76.8°\|77.2°\|77.5°	76.8°\|77.2°\|77.5°	76.8°\|77.2°\|77.5°	76.8°\|77.2°\|77.5°
C	TOP TUBE LENGTH(mm)	571\|570\|569	602\|601\|600	624\|623\|622	657\|656\|655
D	HEAD TUBE LENGTH(mm)	100	105	115	125
E	HEAD TUBE ANGLE	64.4°\|64.8°\|65.1°	64.4°\|64.8°\|65.1°	64.4°\|64.8°\|65.1°	64.4°\|64.8°\|65.1°
F	FORK RAKE(mm)	44	44	44	44
G	TRAIL(mm)	134.1\|131.3\|128.4	134\|131.3\|128.5	133.9\|131.3\|128.5	133.9\|131.3\|128.6
H	WHEELBASE(mm)	1190\|1190\|1189	1222\|1222\|1221	1246\|1246\|1245	1281\|1280\|1280
I	CHAIN STAY LENGTH(mm)	440\|439\|438	440\|439\|438	440\|439\|438	440\|439\|438
J	BOTTOM BRACKET DROP(mm)	40\|35\|30	40\|35\|30	40\|35\|30	40\|35\|30
K	STACK(mm)	617\|614\|611	621\|619\|616	631\|628\|625	640\|637\|634
L	REACH(mm)	426\|430\|434	456\|460\|464	476\|480\|484	507\|510\|514
M	STAND OVER HEIGHT(mm)	732\|737\|742	746\|750\|755	763\|768\|773	781\|758\|790
N	HANDLEBAR WIDTH(mm)	800	800	800	800
O	STEM LENGTH(mm)	40	40	50	50
P	CRANK LENGTH(mm)	165	170	170	170
Q	WHEEL SIZE	[F] 29" [R	[F] 29" [R	[F] 29" [R	[F] 29" [R
