Giant

2026 Giant Revolt Advanced 2 in Carbon

£2,499.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

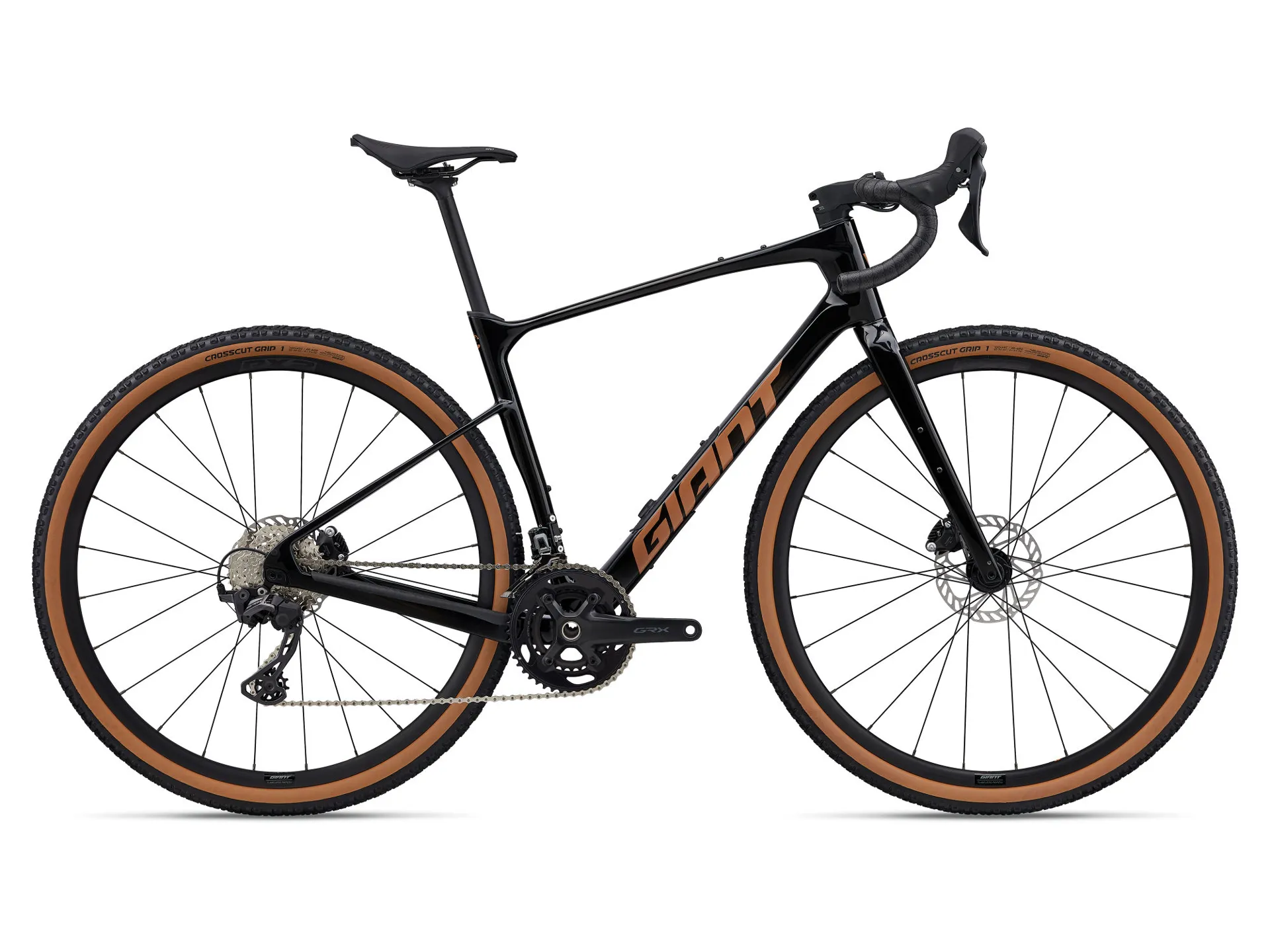

2026 Giant Revolt Advanced 2 in Carbon

Season:2026

Brand:Giant

Code:9080024CBN

2026 Giant Revolt Advanced 2: Smooth, Capable, and Adventure-Ready

The 2026 Giant Revolt Advanced 2 is your do-it-all gravel bike, ready for dirt roads, rugged trails, and long days in the saddle. With its lightweight composite frame, tuned compliance, and adjustable wheelbase, it delivers a fast, smooth ride with the versatility to handle any route you choose.

Key Performance Factors:

Fast and Light:
The Advanced composite frame and fork shed over 160g compared to the previous generation. Updated geometry — including a lower bottom bracket, longer reach, and steeper head tube angle — improves climbing efficiency, stability, and cornering precision.

Tuned Compliance:
Dropped seatstays with slim tubing absorb shocks and vibrations, giving you a smoother ride on rough terrain. The D-Fuse handlebar and seatpost system work together to add comfort without compromising stiffness, so you stay efficient while sprinting, climbing, and cornering.

Adaptable to the Terrain:
A flip chip at the rear dropout lets you adjust the wheelbase for quick, responsive handling or greater stability on high-speed descents. The long setting also makes room for tires up to 53mm. Choose the included D-Fuse seatpost for maximum comfort, or swap to a 30.9mm round or dropper post for a more aggressive setup.

Whether you’re racing gravel, exploring new backroads, or tackling long adventure rides, the 2026 Giant Revolt Advanced 2 delivers confident handling and all-surface performance.

Technical Information
Sizes - XS, S, M, M/L, L, XL
Colours - Lavender Blush, Carbon

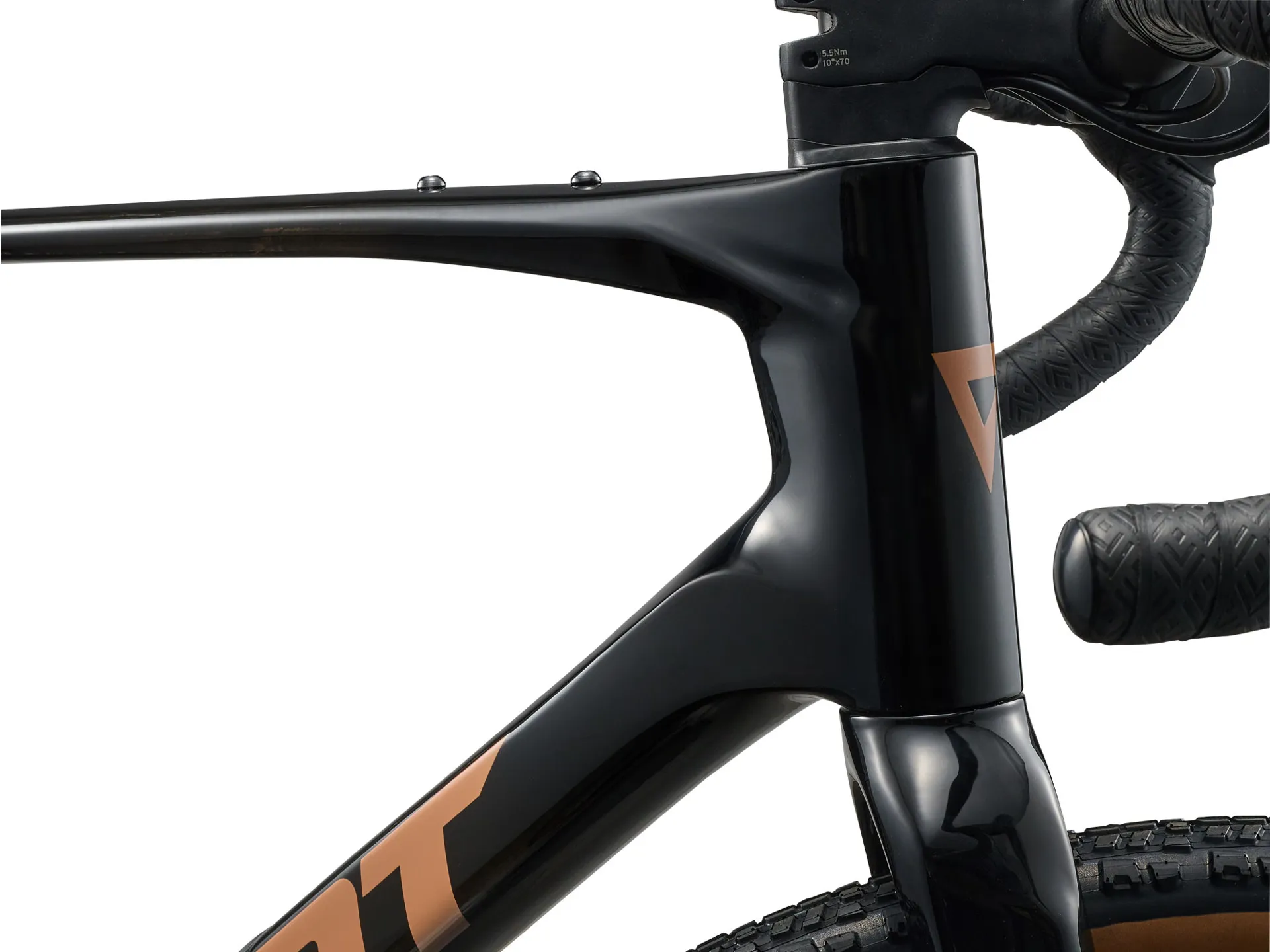

Frame - Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage

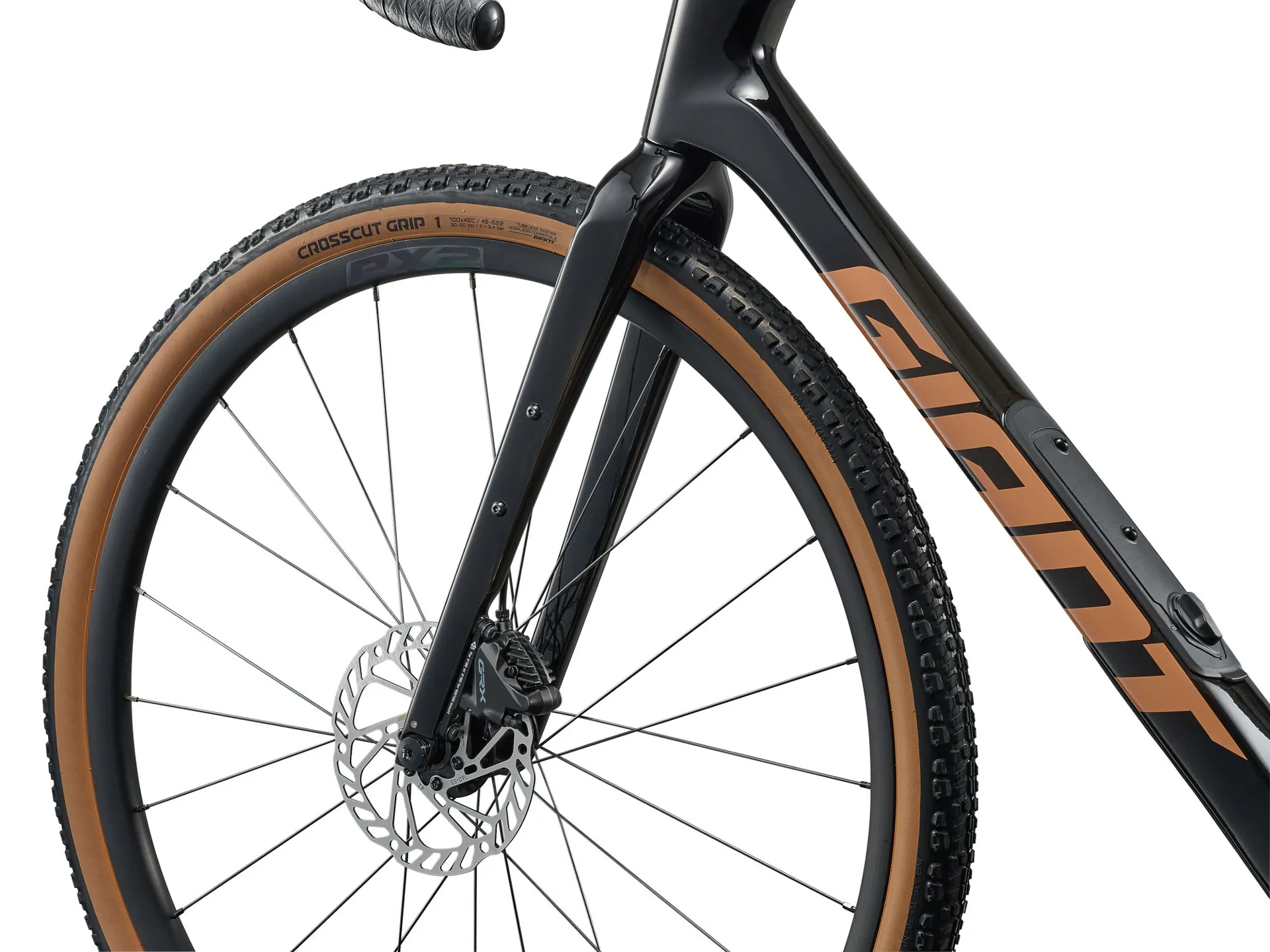

Fork - Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc

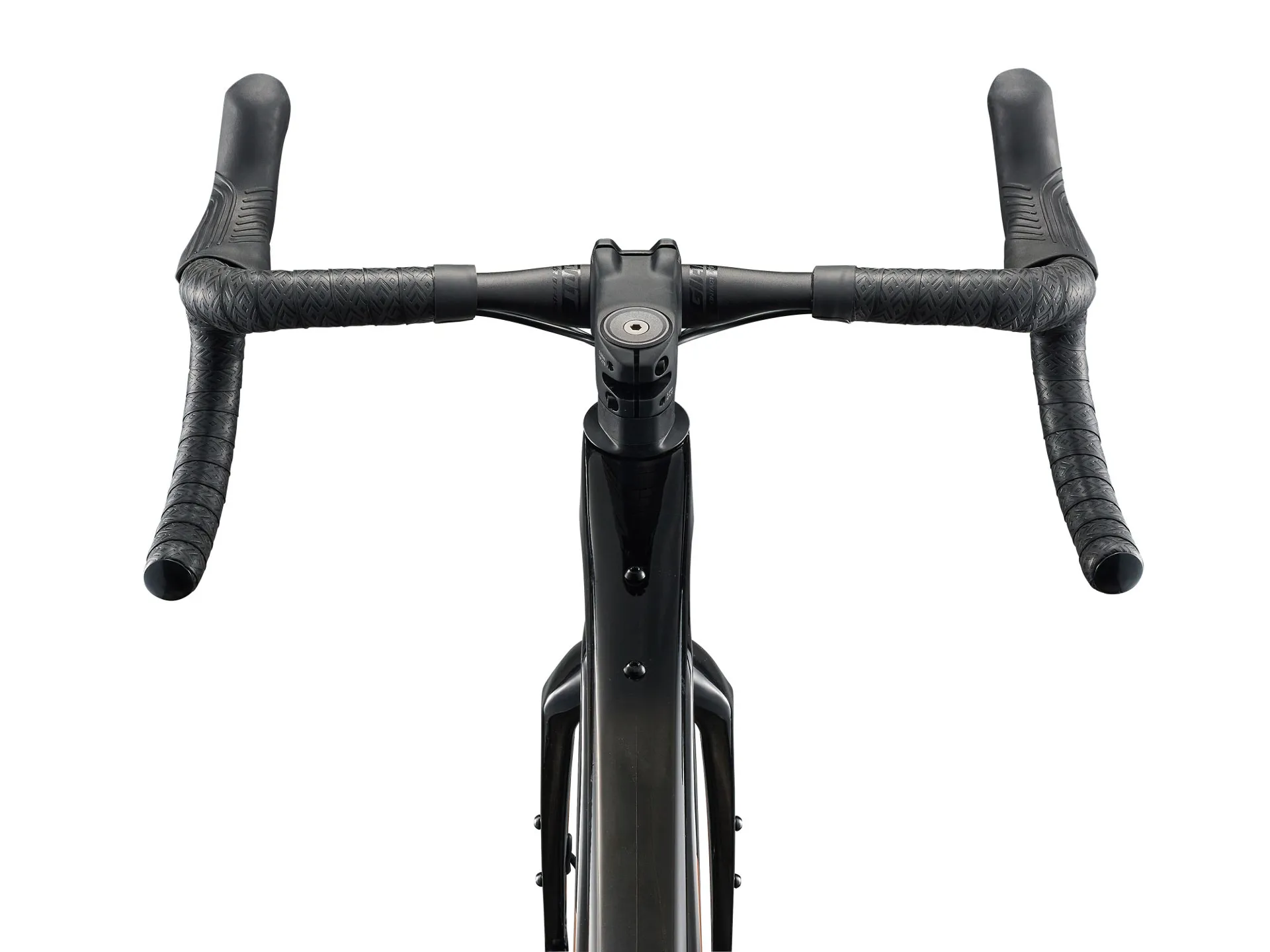

Handlebar - Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Stem - Giant Contact AeroLight, -10 degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Seatpost - Giant D-Fuse, composite, 14mm offset
Saddle - Giant Grit

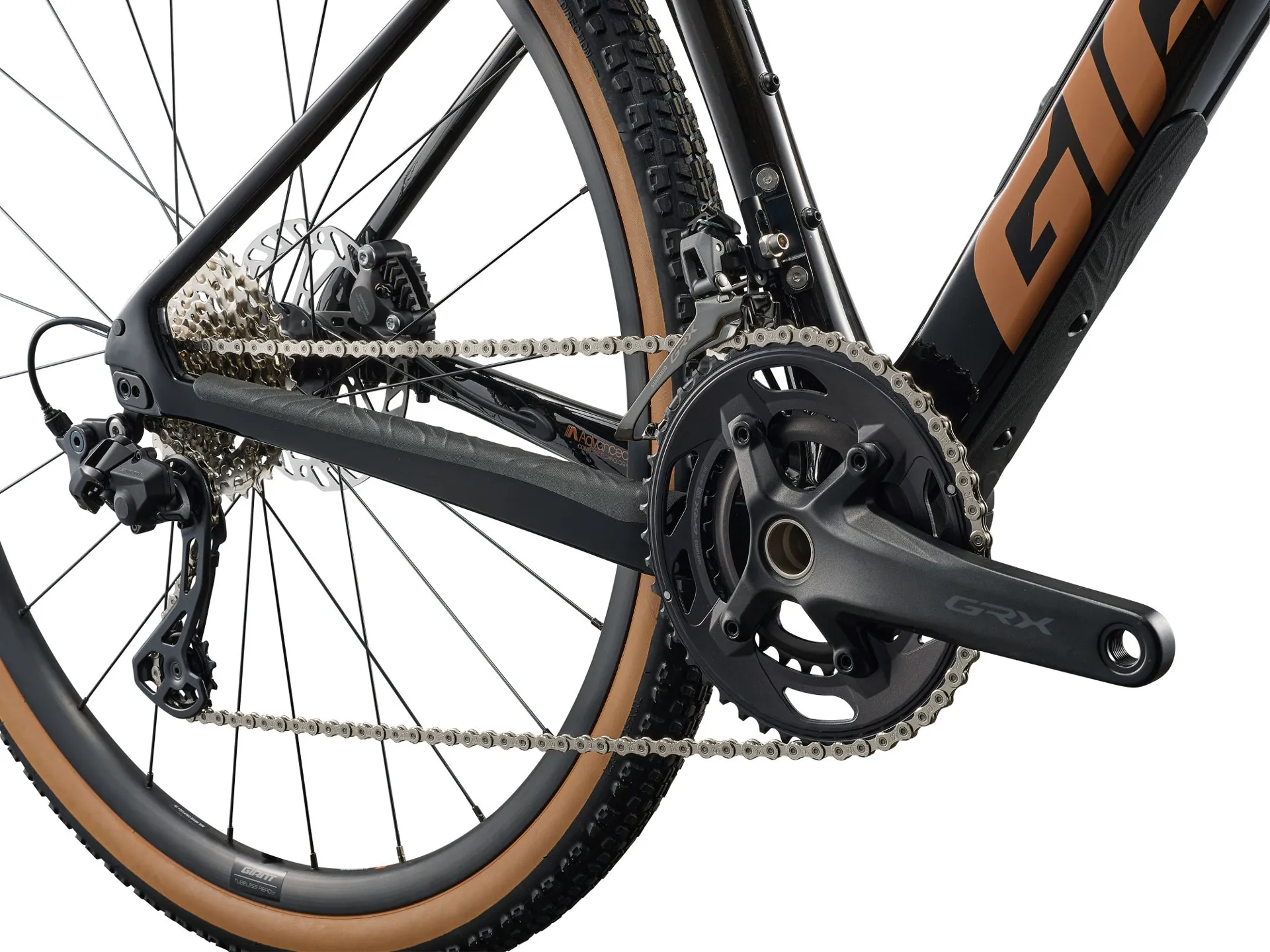

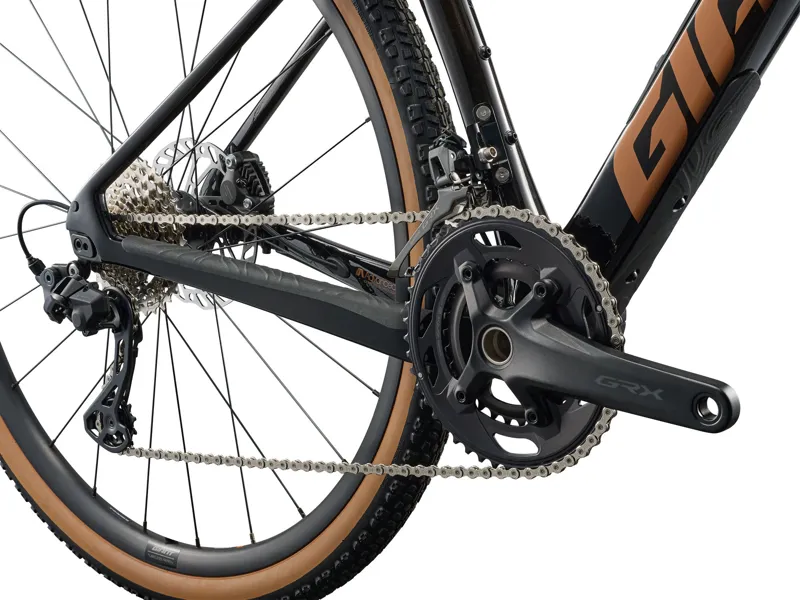

Shifters - Shimano GRX RX-610, 2x12
Front Derailleur - Shimano GRX RX-820
Rear Derailleur - Shimano GRX RX-820
Brakes - Shimano BR-RX410hydraulic, Giant MPH rotors [F]160mm, [R]160mm
Brake Levers - Shimano GRX RX-610 hydraulic
Cassette - Shimano CS-HG710, 12-speed, 11x36
Chain - KMC X12L-1
Crankset - Shimano FC-RX610-2, 30/46 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom Bracket - Shimano, press fit
Rims - Giant P-X2 , alloy
Hubs - Giant alloy, 12mm thru-axle
Spokes - Sapim
Tyres - Giant Crosscut Grip, 700x45c, tubeless
Extras - tubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position, in-frame storage bag
Max Tyre Clearance - 53mm
Sizing Information
SizeHeight
XS155 - 166cm
S159 - 171cm
M169 - 181cm
ML174 - 186cm
L179 - 191cm
XL189 - 200cm




XSSMMLLXL
SHORT|LONGSHORT|LONGSHORT|LONGSHORT|LONGSHORT|LONGSHORT|LONG
ASeat Tube Length(MM)430450470490510530
BSeat Tube Angle74.0°73.5°73.5°73.0°73.0°73.0°
CTop Tube Length(MM)540550560575585600
DHead Tube Length(MM)125135150165180195
EHead Tube Angle70.0°71.0°71.5°72.0°72.0°72.0°
FFork Rake(MM)505050505050
GTrail(MM)78.0|82.072.0|75.068.0|72.065.0|68.065.0|68.065.0|68.0
HWheelbase(MM)1024|10341020|10301026|10361031|10411041|10511056|1066
IChain Stay Length(MM)425|435425|435425|435425|435425|435425|435
JBottom Bracket Drop(MM)80|8180|8180|8180|8180|8180|81
KStack(MM)556570586602616630
LReach(MM)381381387391397407
MStand Over Height(MM)724|731740|747757|764774|780791|797807|814
NHandlebar Width(MM)420420440440460460
OStem Length(MM)506070808090
PCrank Length(MM)170170172172175175
