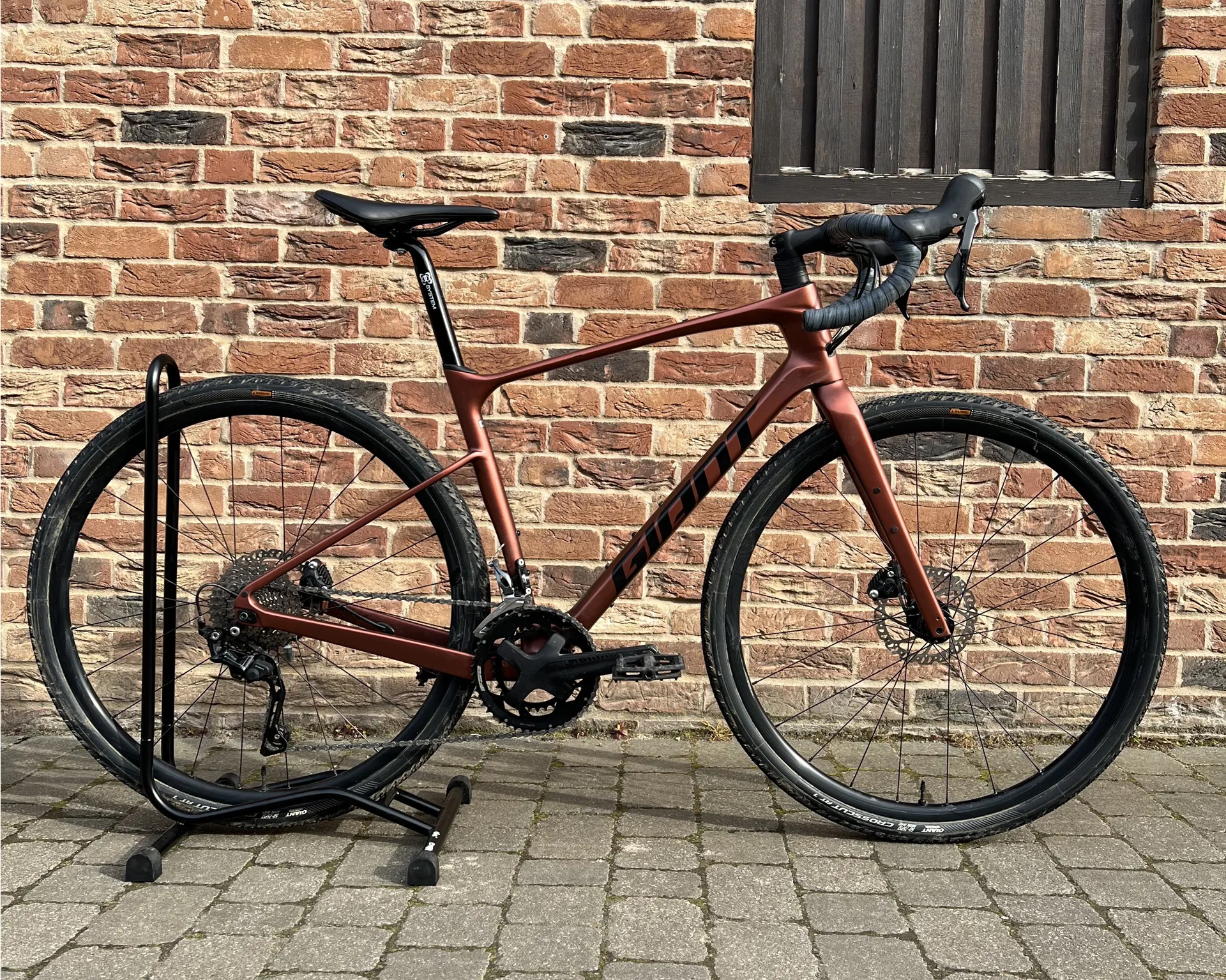

EX-DEMO Giant Revolt Advanced 3 Terracotta Medium

Season:2022

Brand:Giant

Code:2212011205D

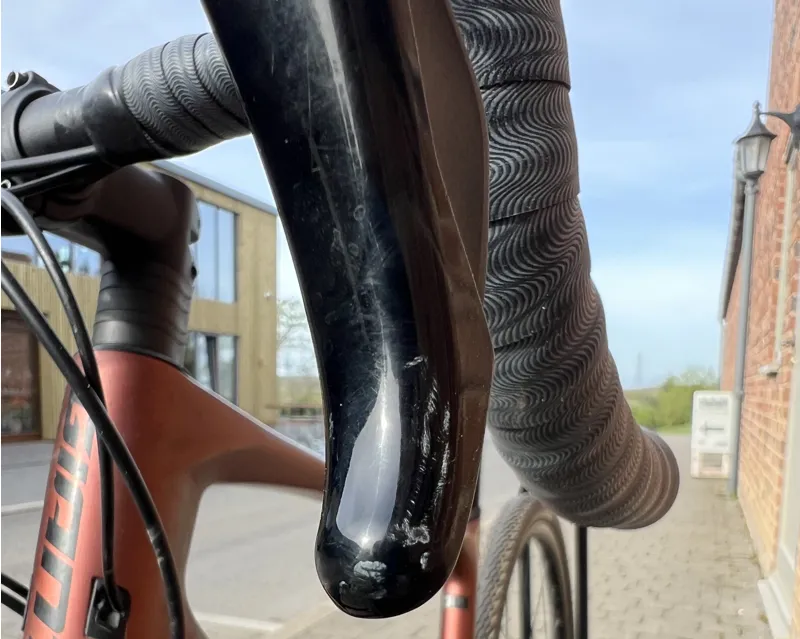

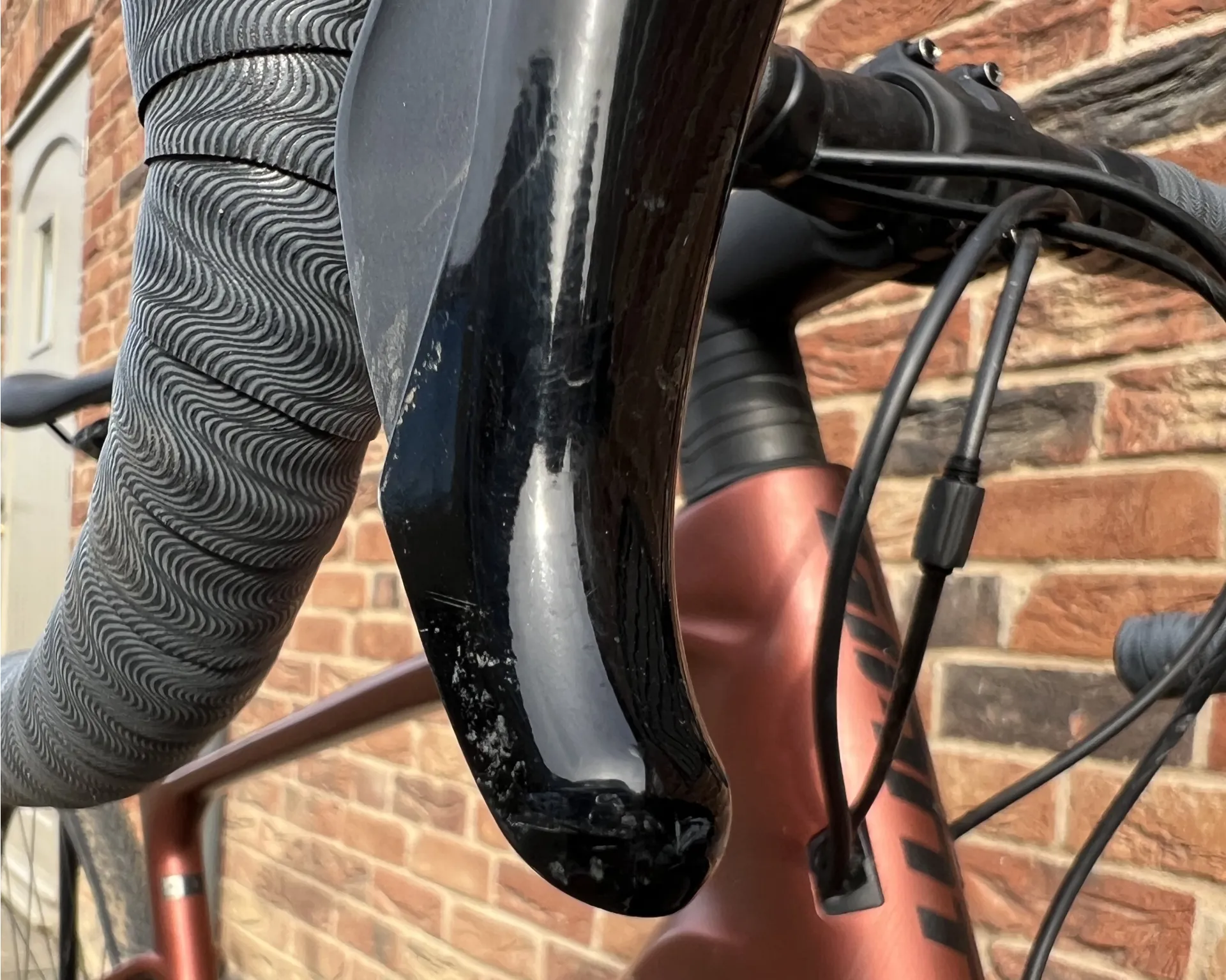

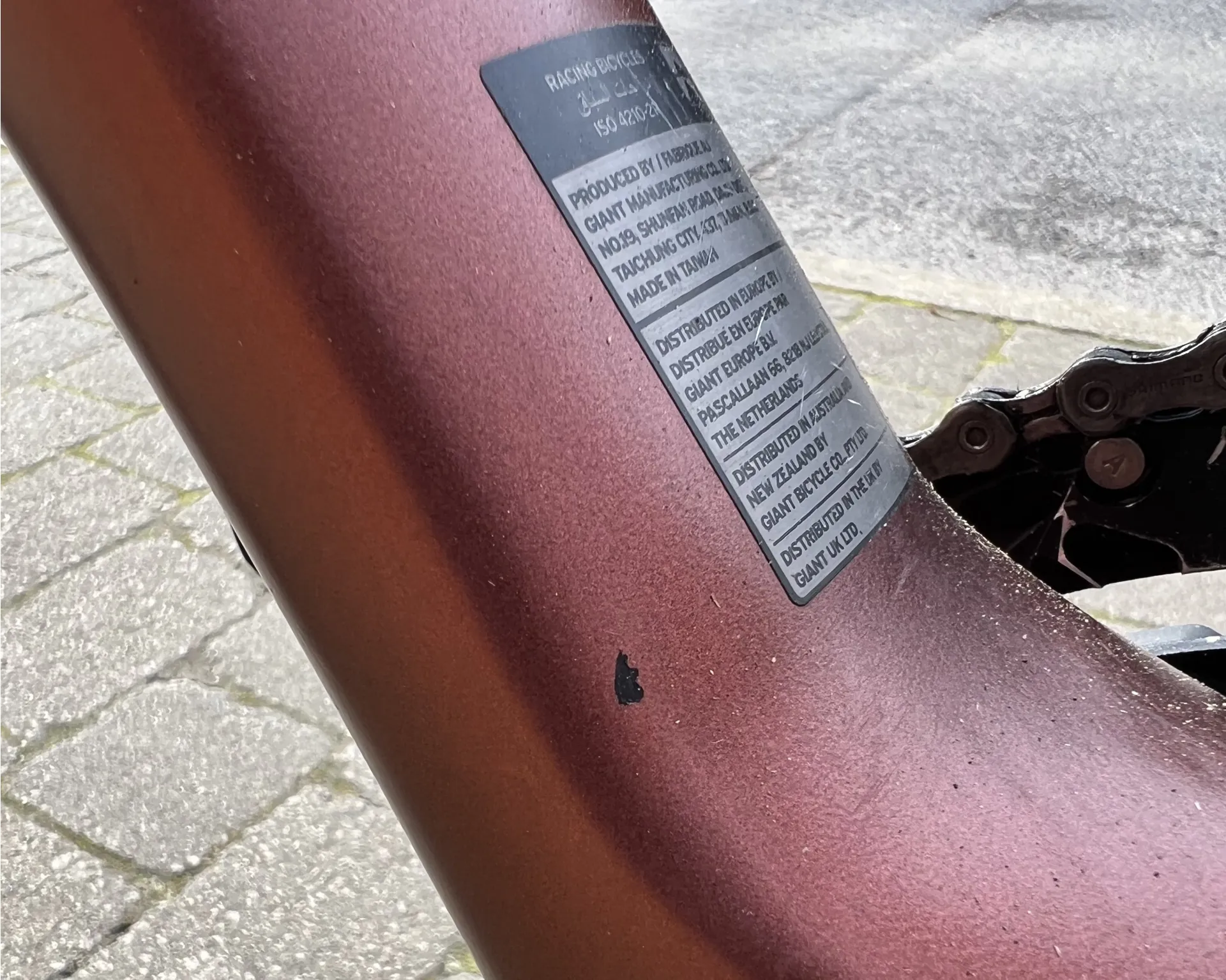

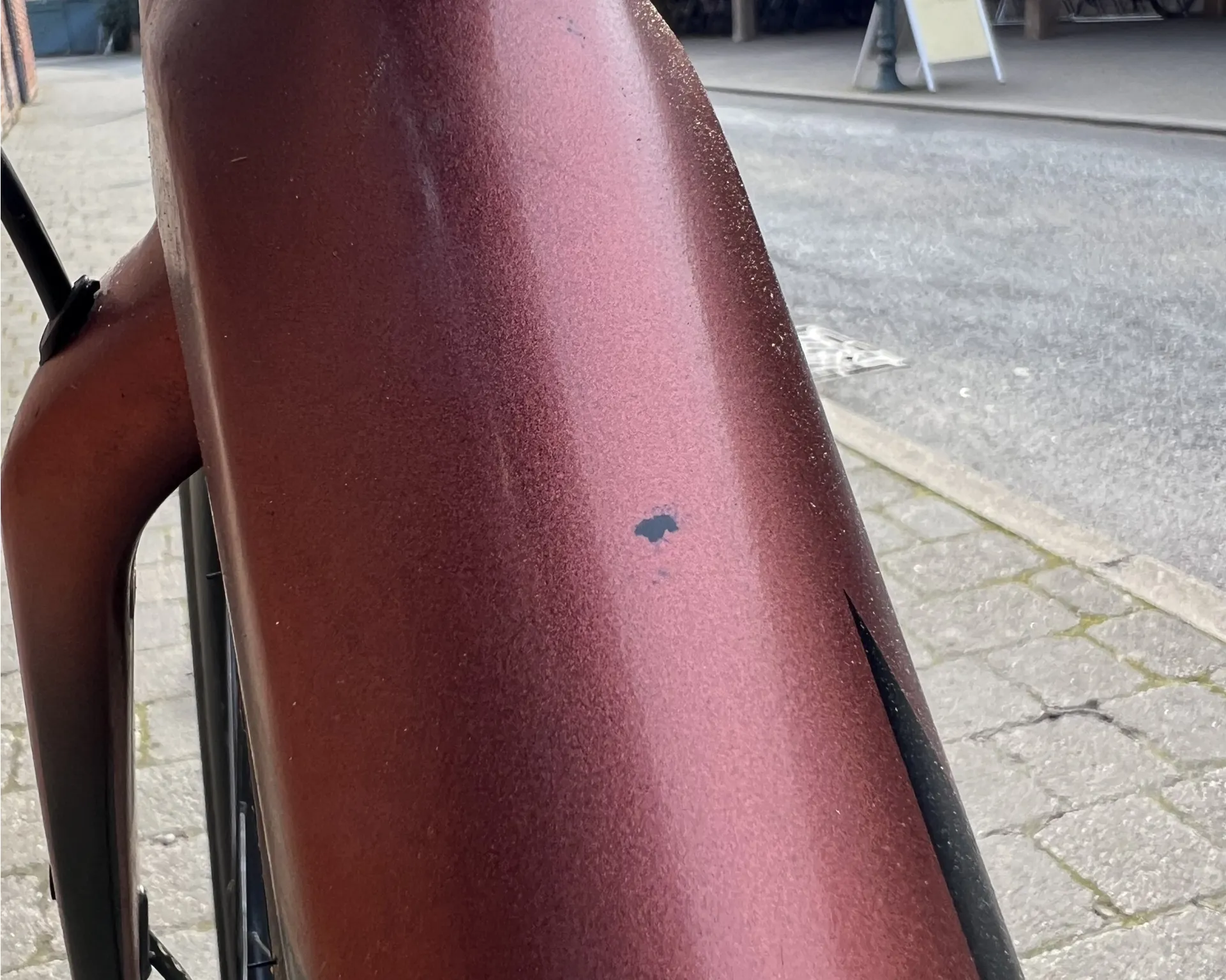

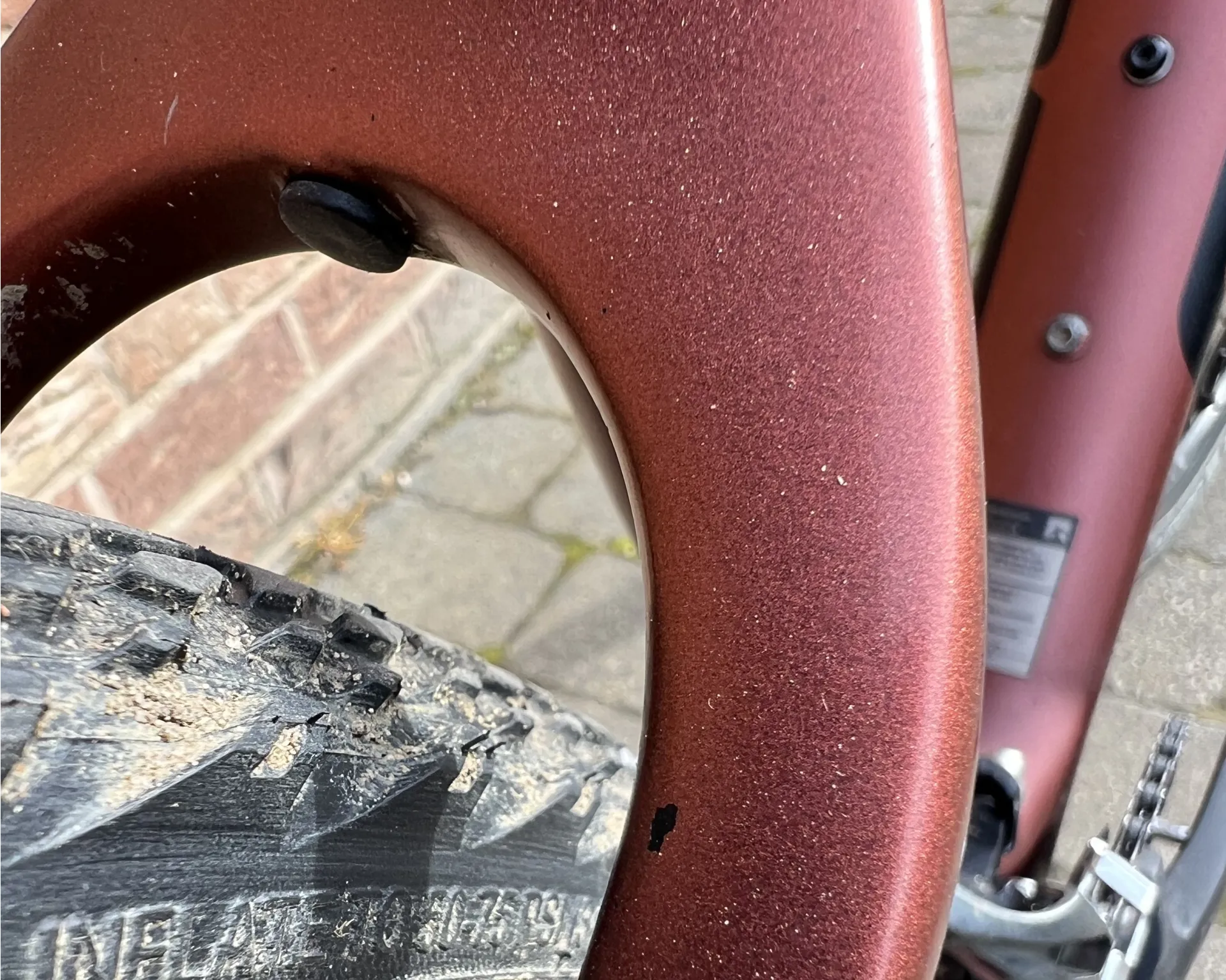

Ex-Demo bike used for demonstration only.
Only ridden a maximum of 500 miles.
For more information on condition or photos please email: [email protected]

Fast gravel, rough gravel, pavement or dirt.

However you choose to roll, this bike does it all. A new composite frameset and adjustable wheelbase make it more capable than ever.

Features:

  • Fast and light - New Advanced composite frame and fork save more than 160 grams compared to previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper headtube angle for improved acceleration and climbing.
  • Tuned compliance - New frame features thinner, dropped seatstays to absorb road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
  • Adaptable to the terrain - A flip chip on the rear dropout adjusts the wheelbase short for quicker handling, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can also choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.
Technical Information
  • Sizes
    S/M/ML/L/XL
  • Colours
    Terracotta
  • Frame
    Advanced-Grade Composite, 12x142mm thru-axle, disc, flip chip dropout
  • Fork
    Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc
  • Shock
    N/A
  • Handlebar
    Giant Contact XR D-Fuse, 31.8mm S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
  • Grips
    Stratus Lite 3.0
  • Stem
    Giant Contact, 8-degree S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
  • Seatpost
    Giant D-Fuse, composite, 14mm offset
  • Saddle
    Giant Approach
  • Pedals
    N/A
  • Shifters
    Shimano GRX RX-400, 2x10
  • Front Derailleur
    Shimano Tiagra
  • Rear Derailleur
    Shimano GRX-RX400 Max 36T
  • Brakes
    Shimano GRX RX-400 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
  • Brake Levers
    Shimano GRX RX-400 hydraulic
  • Cassette
    Shimano Tiagra, 11x34
  • Chain
    KMC X10-1
  • Crankset
    FSA Omega Adventure, 32/48 S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
  • Bottom Bracket
    Shimano, press fit
  • Rims
    Giant P-X2 Disc wheelset, 25mm inner rim width
  • Hubs
    Giant P-X2 Disc wheelset
  • Spokes
    Giant P-X2 Disc wheelset
  • Tyres
    Giant CrossCut AT 1, 700x38c, tubeless
  • Extras
    Factory tubeless set up, 53mm max tyre size in "long" flip chip position, 42mm max tyre size in "short" flip chip position
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
Sizing Information
SizeHeight
S159 - 171cm
M169 - 181cm
ML174 - 186cm
L179 - 191cm
XL189 - 200cm




SizeHeight
S159 - 171cm
M169 - 181cm
ML174 - 186cm
L179 - 191cm
XL189 - 200cm


bike diagram with measurements referenced in table that follows

SMMLLXL
SHORT|LONGSHORT|LONGSHORT|LONGSHORT|LONGSHORT|LONG
ASEAT TUBE LENGTH(mm)450470490510530
BSEAT TUBE ANGLE73.5°73.5°73.0°73.0°73.0°
CTOP TUBE LENGTH(mm)550560575585600
DHEAD TUBE LENGTH(mm)135150165180195
EHEAD TUBE ANGLE71.0°71.5°72.0°72.0°72.0°
FFORK RAKE(mm)5050505050
GTRAIL(mm)72|7568|7265|6865|6865|68
HWHEELBASE(mm)1020|10301026|10361031|10411041|10511056|1066
ICHAIN STAY LENGTH(mm)425|435425|435425|435425|435425|435
JBOTTOM BRACKET DROP(mm)80|8180|8180|8180|8180|81
KSTACK(mm)570586602616630
LREACH(mm)381387391397407
MSTAND OVER HEIGHT(mm)740|747757|764774|780791|797807|814
NHANDLEBAR WIDTH(mm)420440440460460
OSTEM LENGTH(mm)6070808090
PCRANK LENGTH(mm)170172.5172.5175175
QWHEEL SIZE700C700C700C700C700C
